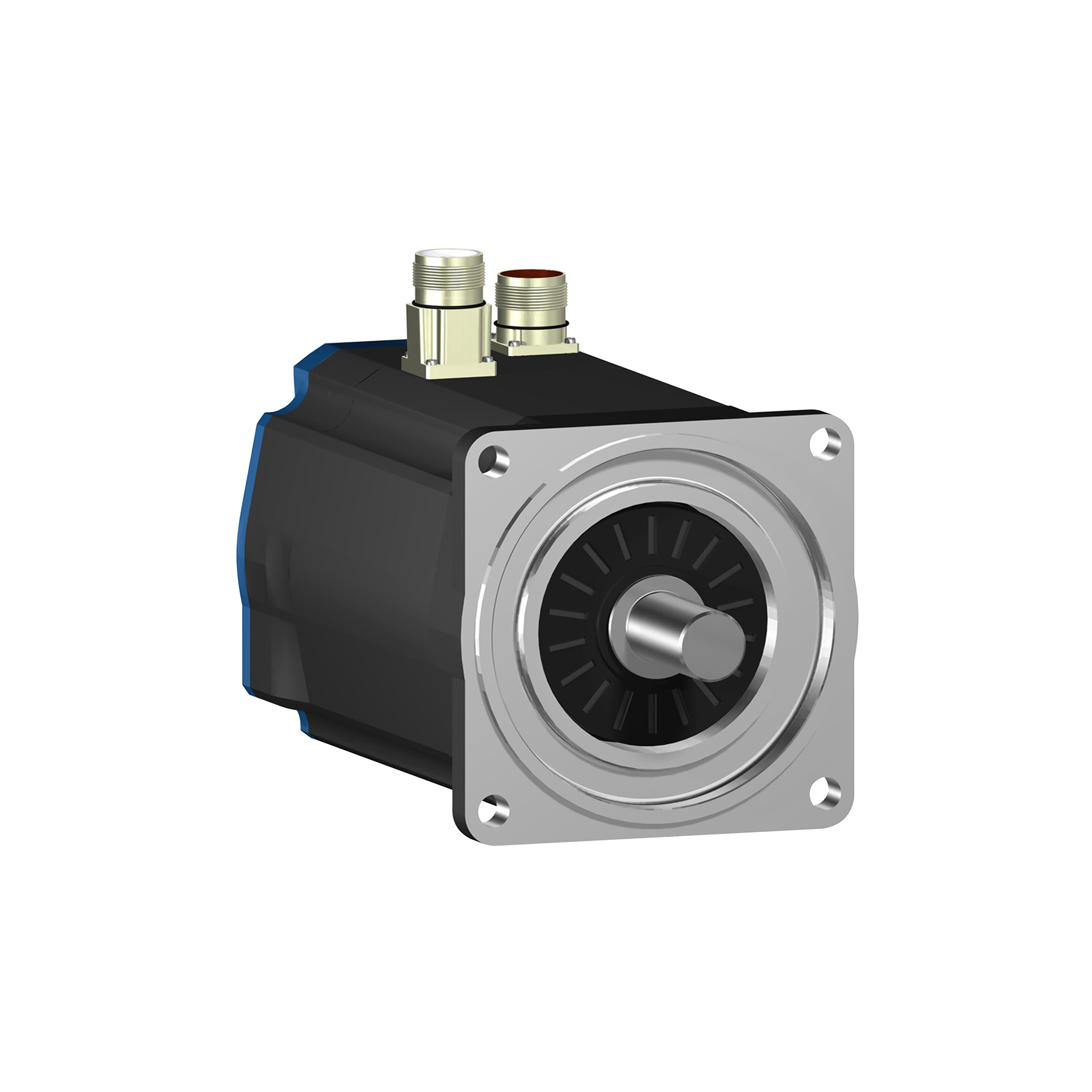

Specification	BSH1401T32A1A

Diameter - Shaft	0.945 in
Features	Key
Function	Servomotor
Length - Shaft and Bearing	1.969 in
Mounting Hole Spacing	5.118 in
Power - Rated	2200 W
RPM	4000 RPM
Size / Dimension Length	5.512 in
Size / Dimension Shape	Square
Size / Dimension Width	5.512 in
Termination Style	Connector
Torque - Rated (mNm)	7630 mNm
Torque - Rated (oz-in)	1080.5 oz-in
Type	AC Motor
Voltage - Rated	480 VAC

Lexium 32 Series

...

Part	Length - Shaft and Bearing	Function	Torque - Rated (oz-in)	Torque - Rated (mNm)	Mounting Hole Spacing	RPM	Termination Style	Features	Power - Rated	Diameter - Shaft	Size / Dimension Length	Size / Dimension Shape	Size / Dimension Width	Voltage - Rated	Type
SCHNEIDER ELECTRIC BSH0702P32F2A	0.906 in	Servomotor	269.1 oz-in	1900 mNm	2.362 in	8000 RPM	Connector	Brake Key	1300 W	0.433 in	2.756 in	Square	2.756 in	480 VAC	AC Motor
SCHNEIDER ELECTRIC BSH0551P12F1A	0.79 in	Servomotor	67.97 oz-in	480 mNm	1.57 in	9000 RPM	Connector	Brake Key	300 W	0.35 in	2.17 in	Square	2.17 in	480 VAC	AC Motor
SCHNEIDER ELECTRIC BSH0553P12A2A	0.787 in	Servomotor	155.8 oz-in	1100 mNm	1.575 in	9000 RPM	Connector	Key	670 W	0.354 in	2.165 in	Square	2.165 in	480 VAC	AC Motor
SCHNEIDER ELECTRIC BMH1402P31A1A
SCHNEIDER ELECTRIC BMH0703P02F2A	1.18 in	Servomotor	339.8 oz-in	2400 mNm	2.36 in	8000 RPM	Connector	Brake	1300 W	0.55 in	2.76 in	Square	2.76 in	480 VAC	AC Motor
SCHNEIDER ELECTRIC BSH0551P02A1A	0.79 in	Servomotor	67.97 oz-in	480 mNm	1.57 in	9000 RPM	Connector		300 W	0.354 in	2.165 in	Square	2.165 in	480 VAC	AC Motor
SCHNEIDER ELECTRIC BSH0702P01F2A	0.91 in	Servomotor	269.1 oz-in	1900 mNm	2.36 in	8000 RPM	Connector	Brake	1300 W	0.43 in	2.76 in	Square	2.76 in	480 VAC	AC Motor
SCHNEIDER ELECTRIC BMH2052P22A2A	3.15 in	Servomotor	5891 oz-in	41600 mNm	7.087 in	3800 RPM	Connector		6.5 kW	1.5 in	8.071 in	Square	8.071 in	480 VAC	AC Motor
SCHNEIDER ELECTRIC BMH1903P21F2A	3.15 in	Servomotor	5240 oz-in	37000 mNm	7.087 in	3500 RPM	Connector	Brake	7.75 kW	1.496 in	7.48 in	Square	7.48 in	480 VAC	AC Motor
SCHNEIDER ELECTRIC BSH0552P02F1A	0.79 in	Servomotor	382.4 oz-in	2700 mNm	1.57 in	9000 RPM	Connector	Brake	400 W	0.354 in	2.165 in	Square	2.165 in	480 VAC	AC Motor
