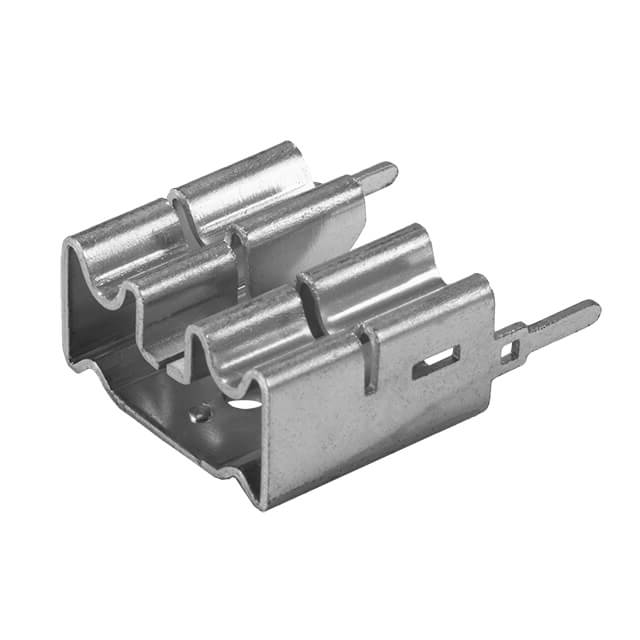

HEAT SINK, STAMPING, TO-220, 19
HSS12-B20-P95
ActiveSame Sky (Formerly CUI Devices)
HEAT SINK, STAMPING, TO-220, 19
Description
General part information
HSS12-B20-P95
Heat Sink TO-220 Aluminum Alloy 2.7W @ 75°C Board Level, Vertical
Technical Specifications
Parameters and characteristics for this part
| Specification | HSS12-B20-P95 |
|---|---|
| Attachment Method | PC Pin |
| Fin Height | 0.433 in |
| Length | 0.866 in |
| Material | Aluminum Alloy |
| Material Finish | Black Anodized |
| Package Cooled | TO-220 |
| Power Dissipation | 2.7 W |
| Shape | Rectangular |
| Thermal Resistance | 27.37 °C/W, 10.9 °C/W |
| Type | Vertical, Board Level |
| Width | 0.748 in |
