222184
ActiveMcGill Microwave Systems

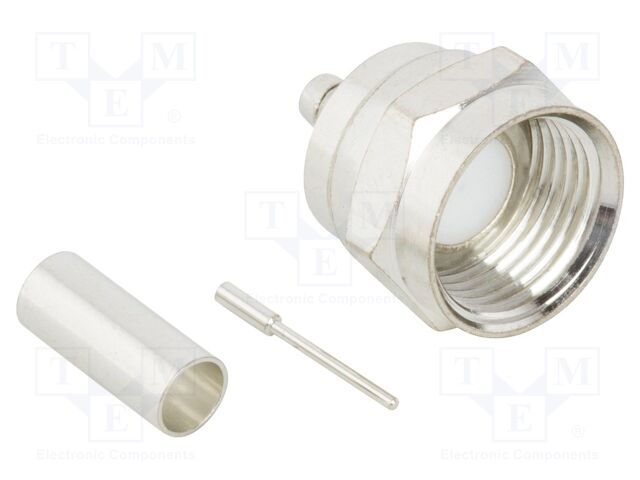

CONNECTOR: F; PLUG; MALE; SOLDERING,CRIMPED; FOR CABLE; STRAIGHT
222184
ActiveMcGill Microwave Systems
CONNECTOR: F; PLUG; MALE; SOLDERING,CRIMPED; FOR CABLE; STRAIGHT
Description
General part information
222184
CONNECTOR: F; PLUG; MALE; SOLDERING,CRIMPED; FOR CABLE; STRAIGHT
Technical Specifications
Parameters and characteristics for this part
| Specification | 222184 |
|---|---|
| Cable Group | 316, RG-174, 188, LMR-100, M17/119-RG174, 188A |
| Center Contact Material | Brass |
| Connector Style | F Type |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Fastening Type | Threaded |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Crimp |
