Description
General part information

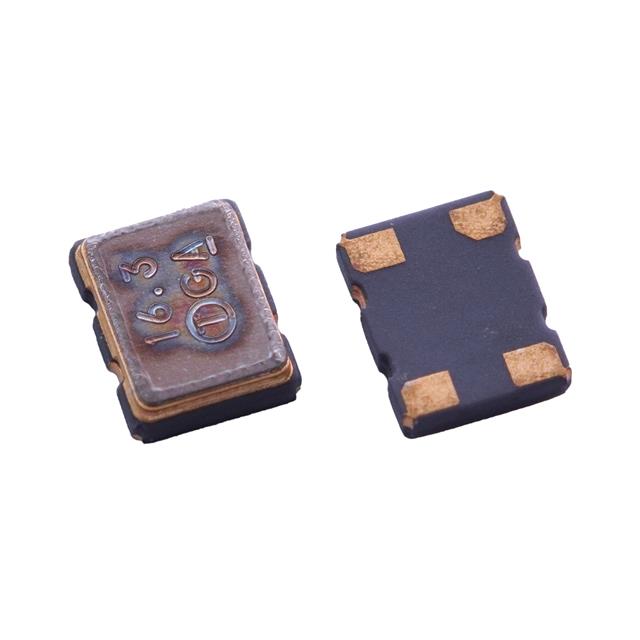

TX0816CA1242
Oscillator
Technical Specifications
Parameters and characteristics for this part
| Specification | TX0816CA1242 |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 1.5 mA |
| Frequency | 26 MHz |
| Frequency Stability | 0.5 ppm |
| Height - Seated (Max) | 0.031 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Output | Clipped Sine Wave |
| Package / Case | 4-SMD, No Lead |
| Package Length | 2.5 mm |
| Package Name | 4-SMD |
| Package Width | 2 mm |
| Size / Dimension Length | 0.098 in |
| Size / Dimension Width | 0.079 in |
| Type | TCXO |
| Voltage - Supply (Maximum) | 3.3 V |
| Voltage - Supply (Minimum) | 1.7 V |
