Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | STPST2H100ZFY | STPST2H100-Y Series |
|---|---|---|
| Current - Average Rectified (Io) | 2 A | 2 A |
| Current - Reverse Leakage @ Vr | 2.7 µA | 2.7 µA |
| Grade | Automotive | Automotive |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature - Junction [Max] | 175 ░C | 175 ░C |
| Operating Temperature - Junction [Min] | -40 °C | -40 °C |
| Package / Case | SOD-123F | SOD-128, SOD-123F |
| Qualification | AEC-Q101 | AEC-Q101 |
| Speed | 200 mA, 500 ns | 200 - 500 mA |
| Supplier Device Package | SOD-123F | SOD128Flat, SOD-123F |
| Technology | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 100 V | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 805 mV | 805 mV |
STPST2H100-Y Series

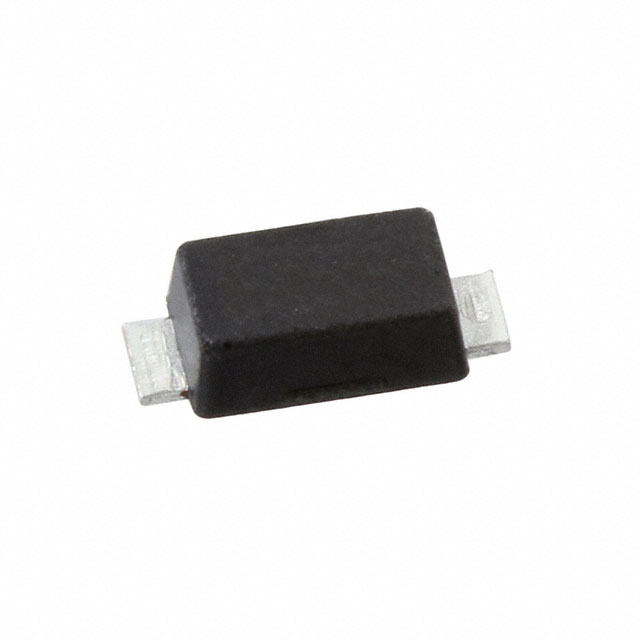

Automotive 100 V, 2 A Power Schottky Trench Rectifier
| Part | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) [Max] | Technology | Package / Case | Mounting Type | Qualification | Speed | Voltage - Forward (Vf) (Max) @ If | Operating Temperature - Junction [Min] | Operating Temperature - Junction [Max] | Current - Average Rectified (Io) | Grade | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics STPST2H100AFY | 2.7 µA | 100 V | Schottky | SOD-128 | Surface Mount | AEC-Q101 | 200 mA, 500 ns | 805 mV | -40 °C | 175 ░C | 2 A | Automotive | SOD128Flat |
STMicroelectronics STPST2H100ZFY | 2.7 µA | 100 V | Schottky | SOD-123F | Surface Mount | AEC-Q101 | 200 mA, 500 ns | 805 mV | -40 °C | 175 ░C | 2 A | Automotive | SOD-123F |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.37 | |
| 10 | $ 0.29 | |||
| 100 | $ 0.17 | |||
| 500 | $ 0.16 | |||
| 1000 | $ 0.11 | |||
| Digi-Reel® | 1 | $ 0.37 | ||
| 10 | $ 0.29 | |||
| 100 | $ 0.17 | |||
| 500 | $ 0.16 | |||
| 1000 | $ 0.11 | |||
| Tape & Reel (TR) | 3000 | $ 0.10 | ||
| 6000 | $ 0.10 | |||
| 9000 | $ 0.09 | |||
| 30000 | $ 0.09 | |||
| 75000 | $ 0.08 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 0.44 | |
| 10 | $ 0.28 | |||
| 25 | $ 0.26 | |||
| 50 | $ 0.23 | |||
| 100 | $ 0.20 | |||
| 250 | $ 0.17 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.13 | |||
Description
General part information
STPST2H100-Y Series
This 2 A, 100 V rectifier is based on ST trench technology that achieves the best-in-class VF/IR trade-off for a given silicon surface.
Integrated in flat and space-saving packages, this STPST2H100-Y trench, and automotive-graded device is intended to be used in high frequency miniature switched mode power supplies such as in automotive, DC/DC converters or ECU power supply. It is also adapted to freewheeling applications, OR-ring, or reverse polarity protection.
