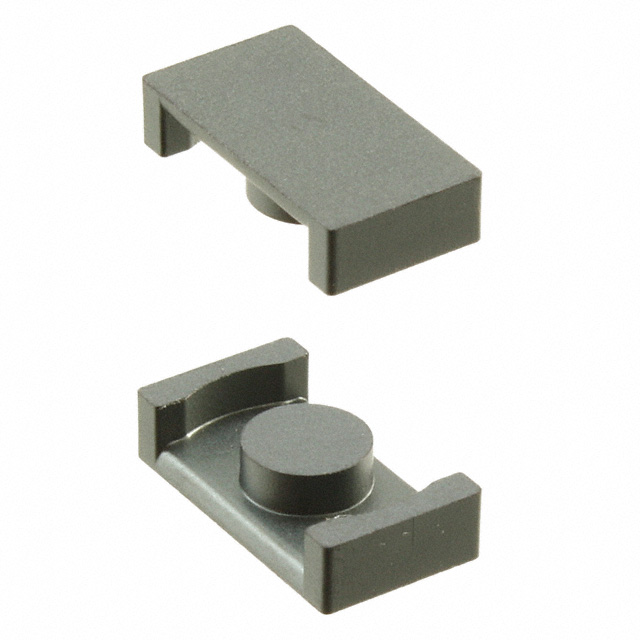

Specification	B65525J0000R087

Core Factor (ΣI/A) mm⁻¹	1.1 mm⁻¹
Core Type	ER
Effective Area (Ae)	12.4 mm²
Effective Length (le)	14.1 mm
Effective Magnetic Volume (Ve)	174 mm³
Effective Permeability (µe)	1050
Finish	Uncoated
Gap	Ungapped
Height	0.098 in
Inductance Factor (Al)	1.2 µH
Initial Permeability (µi)	2200
Length	0.433 in
Material	N87
Package Length	11 mm
Package Name	ER
Package Width	5 mm
Tolerance (Negative)	20 %
Tolerance (Positive)	30 %
Width	0.236 in
