531122-6
ActiveTE Connectivity AMP Connectors
CONN BOARD TO BOARD HDR 70 POS 1.27MM SOLDER RA EDGE MOUNT PACKAGE
531122-6
ActiveTE Connectivity AMP Connectors
CONN BOARD TO BOARD HDR 70 POS 1.27MM SOLDER RA EDGE MOUNT PACKAGE
Description
General part information
531122-6

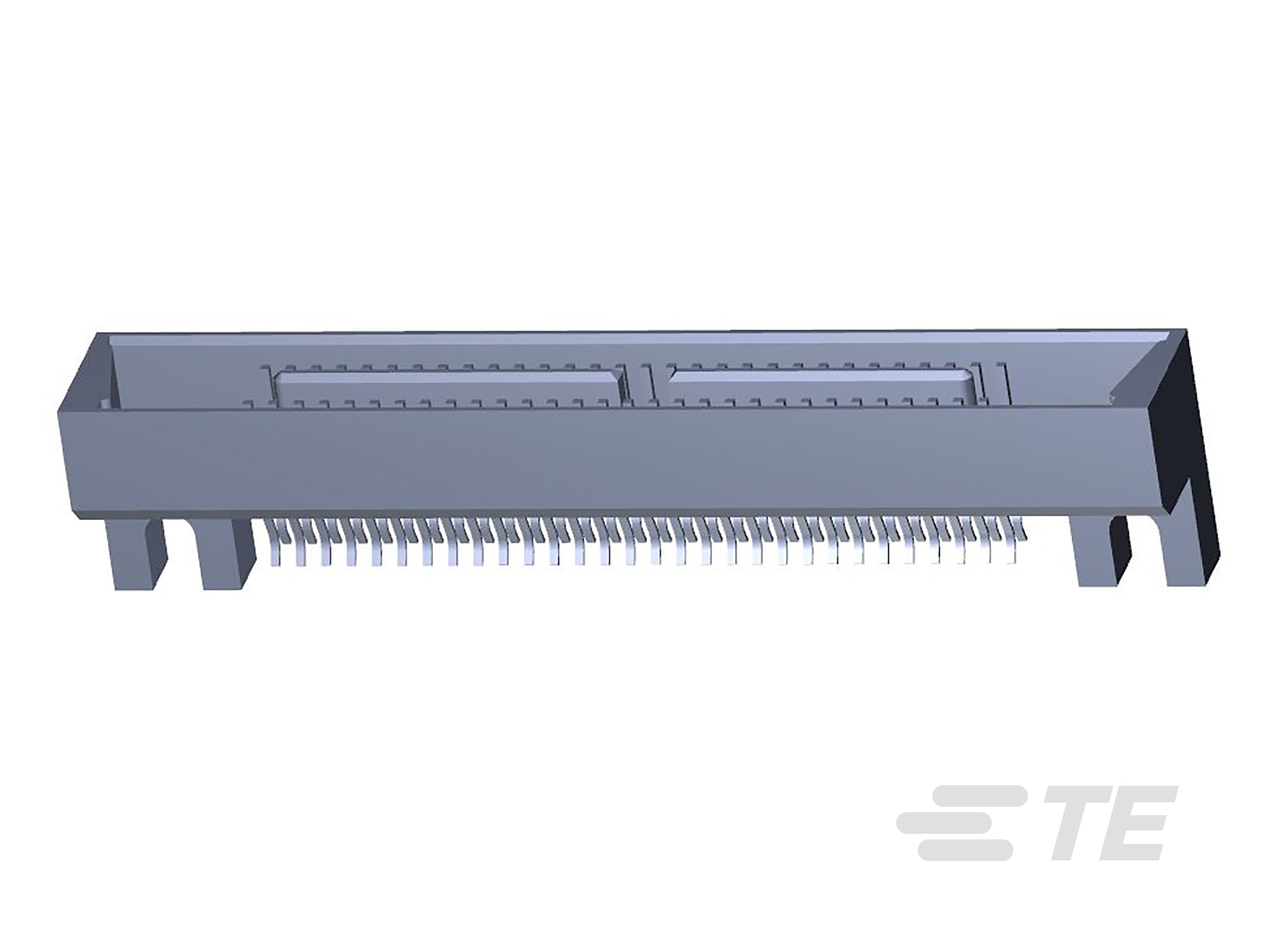

PCB Mount Header, Right Angle, Board-to-Board, 70 Position, 1.27 mm [.05 in] Centerline, Fully Shrouded, Gold (Au), Power & Signal, Gray, Package
Technical Specifications
Parameters and characteristics for this part
| Specification | 531122-6 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin-Lead |
| Contact Finish Thickness - Mating | 30 µin |
| Contact Length - Mating | 0.14 in |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | Card Extender, Mating Guide |
| Insulation Color | Gray |
| Insulation Material | Glass Filled, Liquid Crystal Polymer (LCP) |
| Mounting Type | Straddle Mount, Board Edge |
| Number of Positions | 70 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Pitch - Mating | 0.05 in |
| Row Spacing - Mating | 0.15 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board, Board or Cable |
| Termination | Solder |
