PE3179-48
ActivePasternack

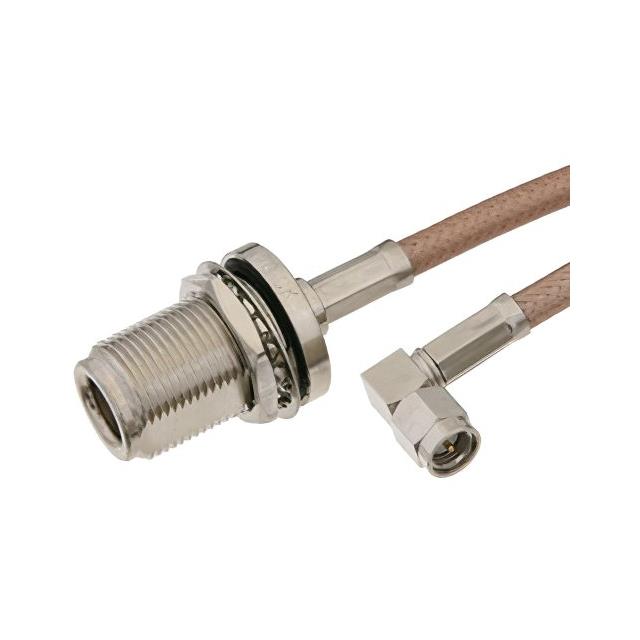

SMA MALE RIGHT ANGLE TO N FEMALE
PE3179-48
ActivePasternack
SMA MALE RIGHT ANGLE TO N FEMALE
Description
General part information
PE3179-48
Cable Assembly Coaxial SMA to N-Type RG-400 48.0" (1.2m) 4.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | PE3179-48 |
|---|---|
| 1st Connector | SMA Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG |
| Cable Type Size | 400 |
| Color | Brown |
| Connector Impedance | 50 Ohms |
| Length | 48 in |
| Overall Impedance | 50 Ohms |
| Style | SMA, N-Type |
