XB5FD21
ActiveSCHNEIDER ELECTRIC
SWITCH SELECT 2POS SPST 6A 120V
XB5FD21
ActiveSCHNEIDER ELECTRIC
SWITCH SELECT 2POS SPST 6A 120V
Description
General part information
XB5FD21

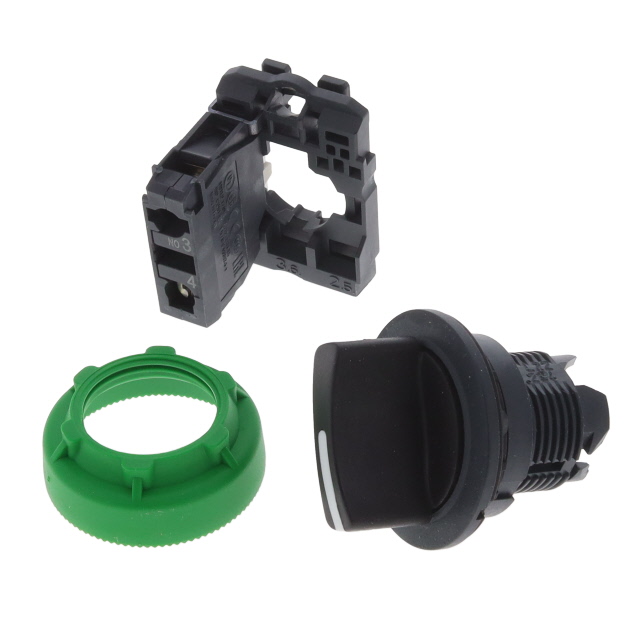

Selector Switch 2 Position SPST-NO 6A (AC), 550mA (DC) 120 V Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | XB5FD21 |
|---|---|
| Approval Agency | UL, CSA |
| Circuit | SPST-NO |
| Current Rating | 550 mA, 6 A |
| Electrical Life (Cycles) | 1000000 Cycles |
| Illumination | Non-Illuminated |
| Ingress Protection Description | Waterproof, Water Resistant, Dust Tight |
| Ingress Protection IP Rating | IP69K, IP69, IP67, IP66 |
| Mechanical Life (Cycles) | 1000000 Cycles |
| Mounting Type | Panel Mount |
| Number of Positions | 2 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Panel Cutout Diameter | 30.5 mm |
| Panel Cutout Shape | Circular |
| Switch Function | Off-On |
| Termination Style | Screw Terminal |
| Type | Standard |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 125 V |
