021636090
ActiveRose Enclosures
BOX FIBERGLASS 14.17"L X 6.3"W
021636090
ActiveRose Enclosures
BOX FIBERGLASS 14.17"L X 6.3"W
Description
General part information
021636090

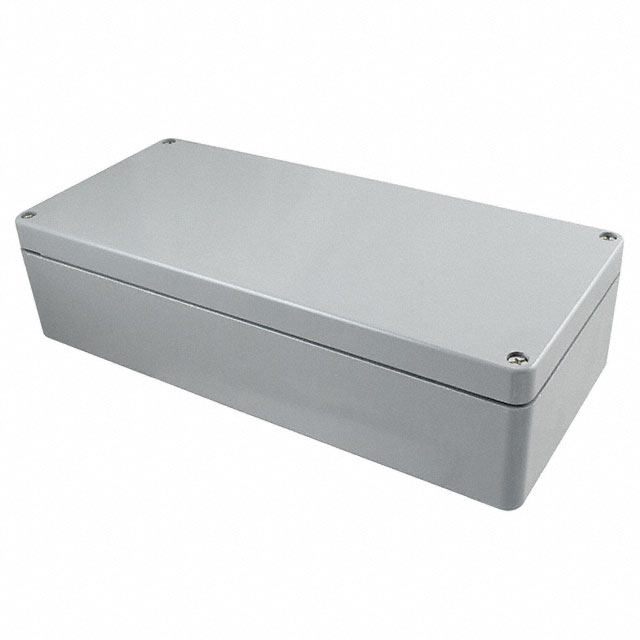

Box Fiberglass/Polyester Gray Cover Included 14.173" L x 6.299" W (360.00mm x 160.00mm) X 3.583" (91.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 021636090 |
|---|---|
| Area (L x W) | 89.3 in² |
| Color | Gray |
| Container Type | Box |
| Design | Cover Included |
| Features | Watertight |
| Height | 3.583 in |
| Material | Fiberglass, Polyester |
| Material Flammability Rating | UL94 V-0 |
| Ratings | UL-508, NEMA 1, 2, 4X, IP66, 4 |
| Size / Dimension Length | 14.173 in |
| Size / Dimension Width | 6.299 in |
| Thickness | 0.236 in |
| Weight | 4.7 lbs |
