Description
General part information

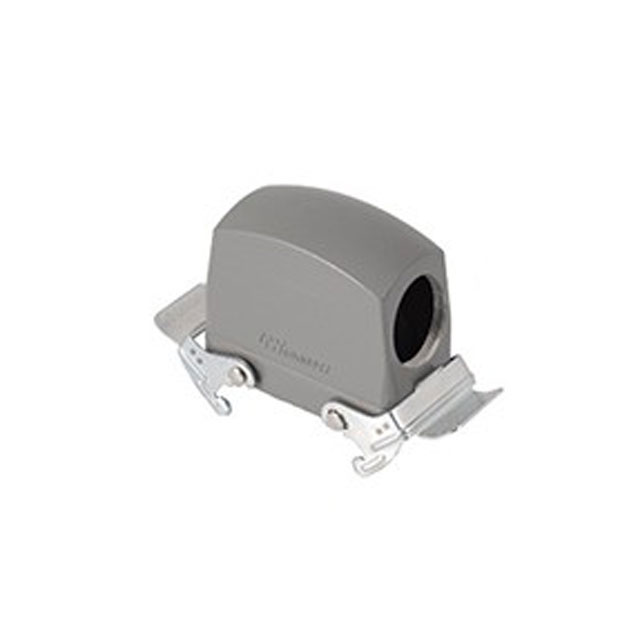

0936013314
24B STD HOOD 2LEV HC S/E M40
Technical Specifications
Parameters and characteristics for this part
| Specification | 0936013314 |
|---|---|
| Connector Type | Hood |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Die Cast, Aluminum |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP66 |
| Lock Location | Locking Clip (2) on Hood |
| Size | 24B |
| Size / Dimension Height | 3.15 in |
| Size / Dimension Length | 4.744 in |
| Size / Dimension Width | 1.713 in |
| Style | Side Entry |
| Thread Size | M40 |
