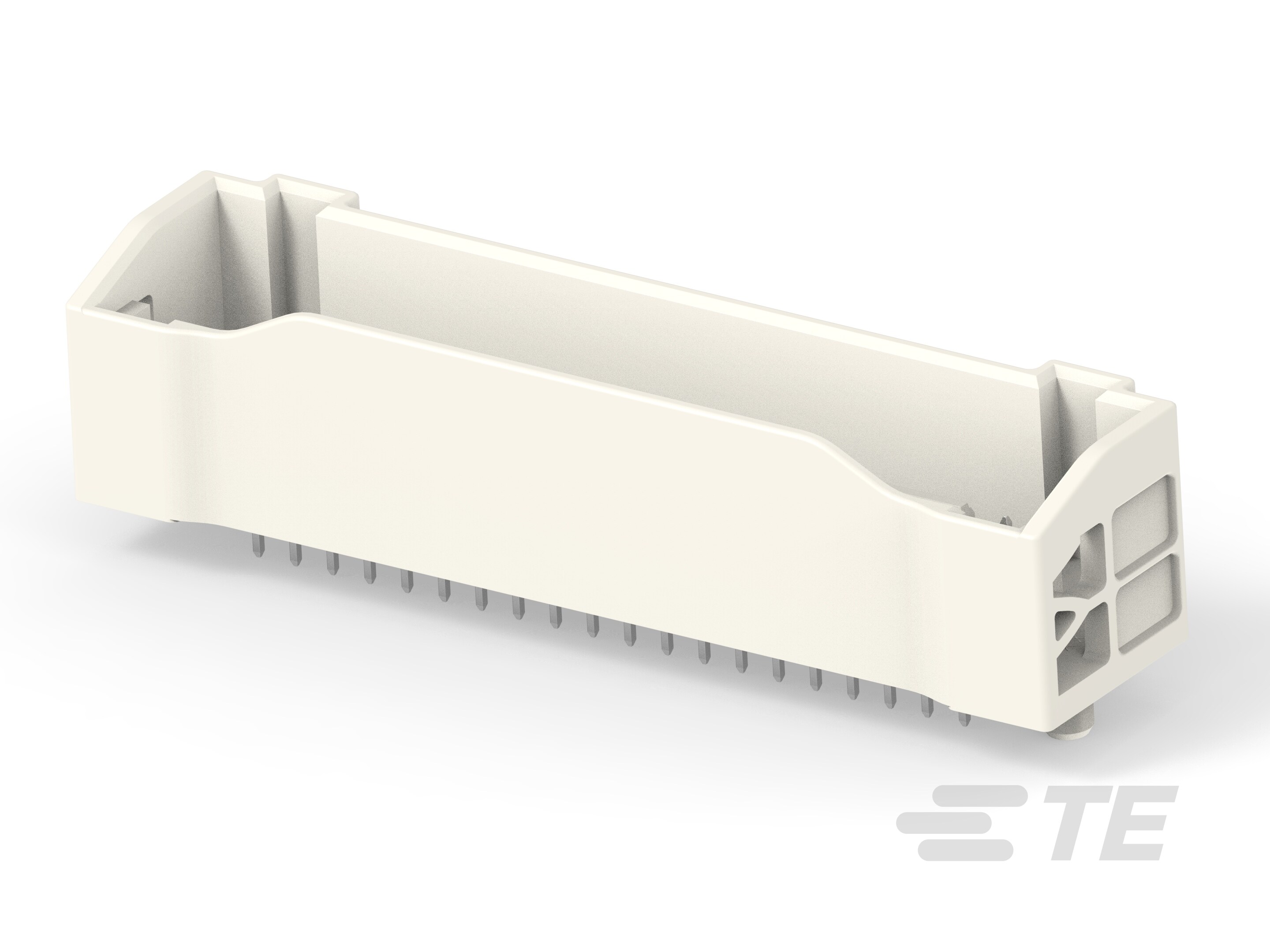

Specification	2395225-1

Connector Type	Header
Contact Finish - Mating	Tin
Contact Length - Post	0.15 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3 A
Fastening Type	Push-Pull
Features	Board Guide
Insulation Color	Natural
Insulation Height	0.571 in
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-30 °C
Pitch - Mating	0.098 in
Row Spacing - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	50 V
Voltage Rating (Type)	DC
