2295167-1
ActiveTE Connectivity AMP Connectors
22POS,0.64 MALE GEN. Y,TABHSG,ASSY,SLD
2295167-1
ActiveTE Connectivity AMP Connectors
22POS,0.64 MALE GEN. Y,TABHSG,ASSY,SLD
Description
General part information
2295167-1

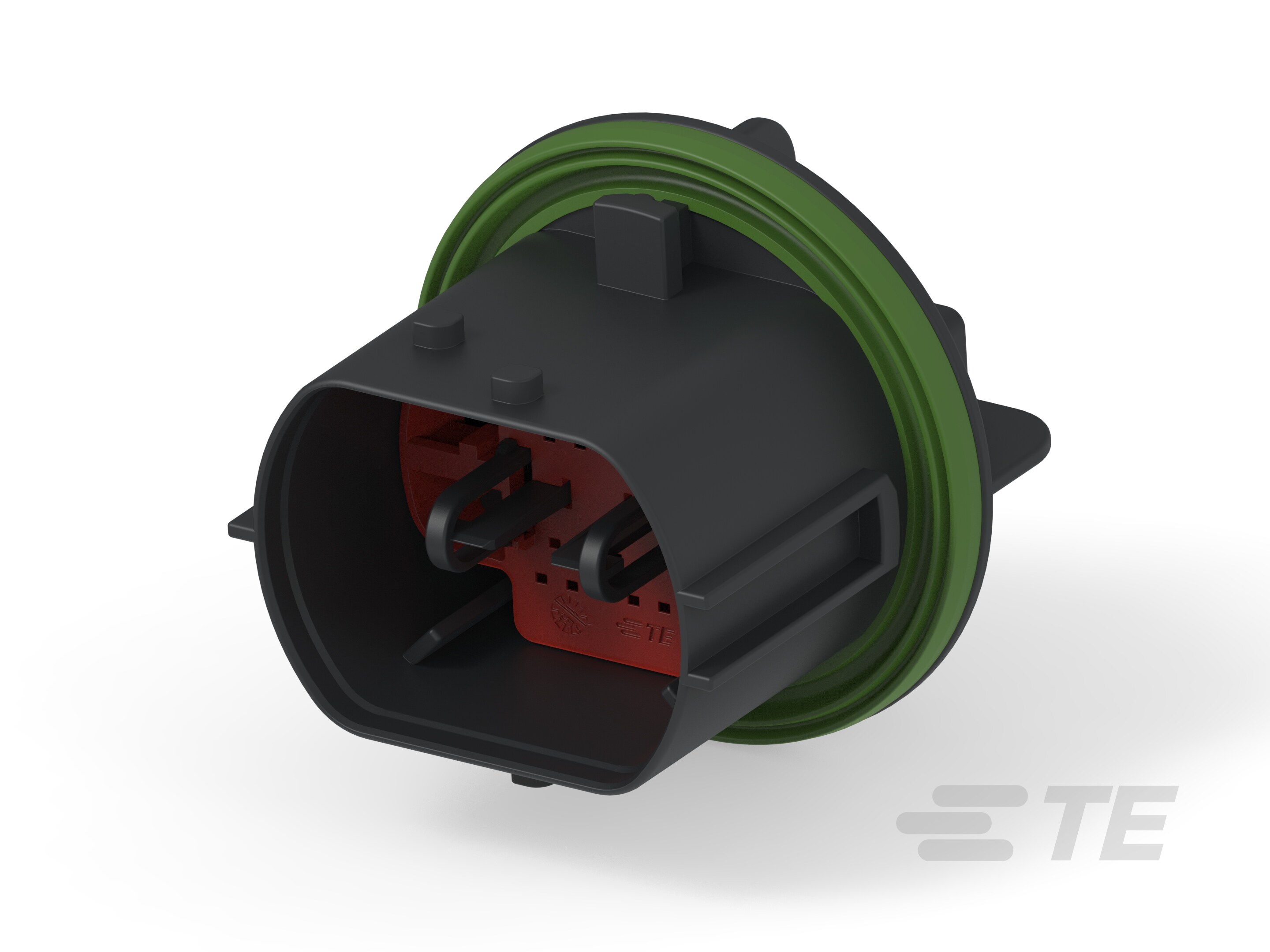

22 Position Housing, Housing for Male Terminals, Wire-to-Wire, 2.6 mm [.102 in] Centerline, Sealable, Black, Generation Y Connector System
Technical Specifications
Parameters and characteristics for this part
| Specification | 2295167-1 |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | Sealed |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 22 |
| Number of Rows | 4 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -30 °C |
| Pitch | 0.102 in |
| Row Spacing | 0.118 in |
