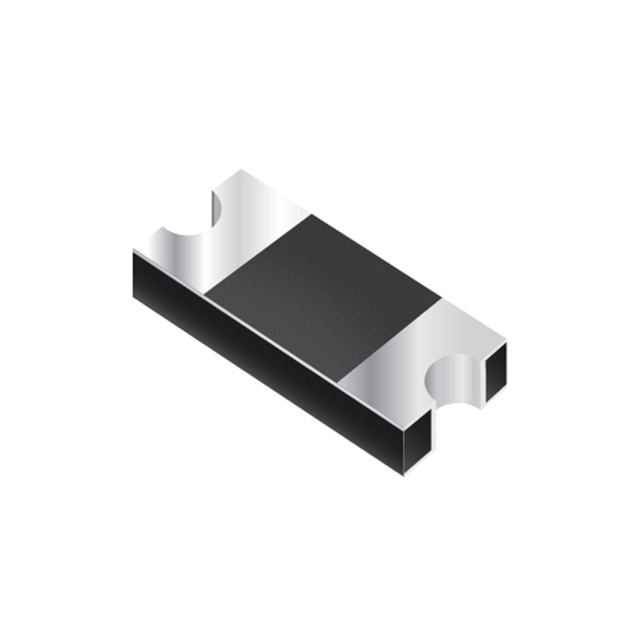

Specification	CD214A-B120LR

Capacitance	110 pF
Current - Average Rectified (Io)	1 A
Current - Reverse Leakage	1 mA
Mounting Type	Surface Mount
Operating Temperature - Junction (Max)	125 °C
Operating Temperature - Junction (Min)	-55 °C
Package / Case	No Lead, 2-SMD
Package Name	2-SMD
Speed - Fast Recovery (Maximum)	500 ns
Speed - Fast Recovery (Minimum)	200 mA
Technology	Schottky
Voltage - DC Reverse (Vr) (Max)	20 V
Voltage - Forward (Vf) (Max)	380 mV, 380 mV

CD214A Series

Part	Package Name	Mounting Type	Applications	Bidirectional Channels	Type	Current - Peak Pulse	Voltage - Reverse Standoff (Typ)	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Clamping (Max)	Power Line Protection	Package / Case	Power - Peak Pulse	Voltage - Breakdown (Min)	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max)	Technology	Voltage - Forward (Vf) (Max)	Speed - Fast Recovery (Maximum)	Speed - Fast Recovery (Minimum)	Current - Reverse Leakage	Capacitance	Operating Temperature - Junction (Max)	Operating Temperature - Junction (Min)	Unidirectional Channels	Reverse Recovery Time (trr)	Speed	Speed - Recovery Current	Speed - Recovery Time
Bourns Inc. CD214A-T12CALF	DO-214AC (SMA)	Surface Mount	General Purpose	1	Zener	20.1 A	12 V	-55 °C	150 °C	19.9 V	No	DO-214AC SMA	400 W	13.3 V
Bourns Inc. CD214A-B240LLF	DO-214AC (SMA)	Surface Mount										DO-214AC SMA			2 A	40 V	Schottky	430 mV	500 ns	200 mA	2 mA	200 pF	125 °C	-55 °C
Bourns Inc. CD214A-T11ALF	DO-214AC (SMA)	Surface Mount	General Purpose		Zener	22 A	11 V	-55 °C	150 °C	18.2 V	No	DO-214AC SMA	400 W	12.2 V											1
Bourns Inc. CD214A-FS1D	2-SMD	Surface Mount										2-SMD No Lead			1 A	200 V	Standard	950 mV	500 ns	200 mA	5 µA	8 pF	175 °C	-65 °C		35 ns
Bourns Inc. CD214A-RS1M	2-SMD	Surface Mount										2-SMD No Lead			1 A	1 kV	Standard	1.3 V	500 ns	200 mA	5 µA	8.2 pF	175 °C	-65 °C		500 ns
Bourns Inc. CD214A-F1200	DO-214AC (SMA)	Surface Mount										DO-214AC SMA			1 A	200 V	Standard	950 mV	500 ns	200 mA	5 µA	10 pF	150 °C	-55 °C		25 ns
Bourns Inc. CD214A-S1M	2-SMD	Surface Mount										2-SMD No Lead			1 A	1 kV	Standard	1 V 1 V		200 mA 500 ns	5 µA	12 pF	175 °C	-65 °C			Standard Recovery	200 mA 200 mA	500 ns
Bourns Inc. CD214A-RS1K	DO-214AC (SMA)	Surface Mount										DO-214AC SMA			1 A	800 V	Standard	1.3 V	500 ns	200 mA	5 µA	8.2 pF				300 ns
Bourns Inc. CD214A-B130LLF	DO-214AC (SMA)	Surface Mount										DO-214AC SMA			1 A	30 V	Schottky	410 mV	500 ns	200 mA	1 mA	100 pF	125 °C	-55 °C
Bourns Inc. CD214A-T18ALF	DO-214AC (SMA)	Surface Mount	General Purpose		Zener	13.7 A	18 V	-55 °C	150 °C	29.2 V	No	DO-214AC SMA	400 W	20 V											1
