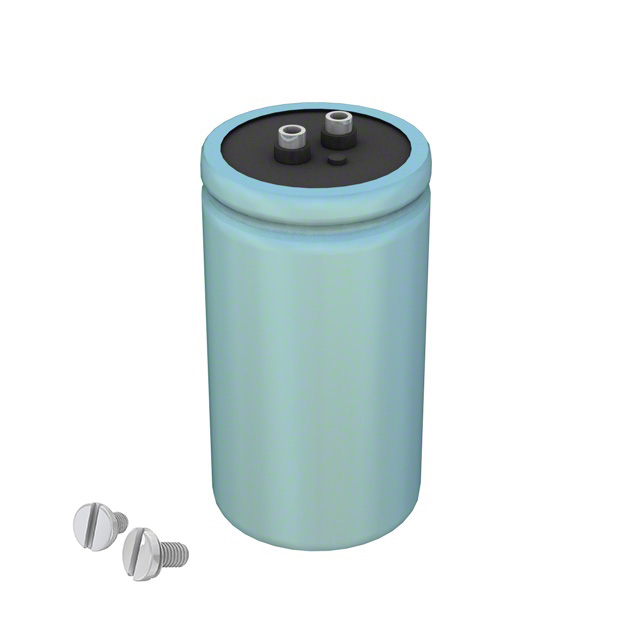

CGR153U030V3L
ActiveCornell Dubilier Knowles
CAP ALUM 15000UF 30V SCREW CHAS
CGR153U030V3L
ActiveCornell Dubilier Knowles
CAP ALUM 15000UF 30V SCREW CHAS
Description
General part information
CGR153U030V3L
15000 µF 30 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 9mOhm @ 120Hz 2000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | CGR153U030V3L |
|---|---|
| Applications | General Purpose |
| Capacitance | 15000 µF |
| ESR (Equivalent Series Resistance) | 9 mOhm |
| Height - Seated (Max) | 3.625 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Screw Terminals, Radial |
| Polarization | Polar |
| Ripple Current | 22.655 A, 19.7 A |
| Size / Dimension Diameter | 2 in |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 75 % |
| Voltage - Rated | 30 VAC |
