STANDARD TERMINAL BLOCK, 2 CONTACTS, DIN RAIL MOUNT, 8 AWG
285-637
ActiveWAGO Corporation
STANDARD TERMINAL BLOCK, 2 CONTACTS, DIN RAIL MOUNT, 8 AWG
Description
General part information
285-637

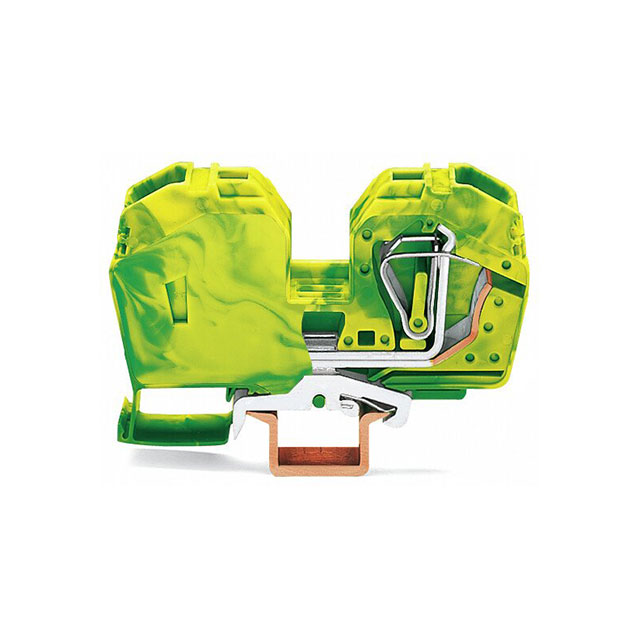

The 285-637 from Wago is a 2 conductor ground terminal block with integrated end plate.
Technical Specifications
Parameters and characteristics for this part
| Specification | 285-637 |
|---|---|
| Color | Yellow, Green |
| Material - Insulation | Polyamide, PA66, Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Stripping Length | 23 mm |
| Terminal Width | 16 mm |
| Termination Style | Push In, Spring |
| Type | Earth, Ground |
| Wire Gauge or Range - AWG (Max) | 10 AWG |
| Wire Gauge or Range - AWG (Min) | 2 AWG |
| Wire Gauge or Range - mm² (Maximum) | 35 mm² |
| Wire Gauge or Range - mm² (Minimum) | 6 mm² |
