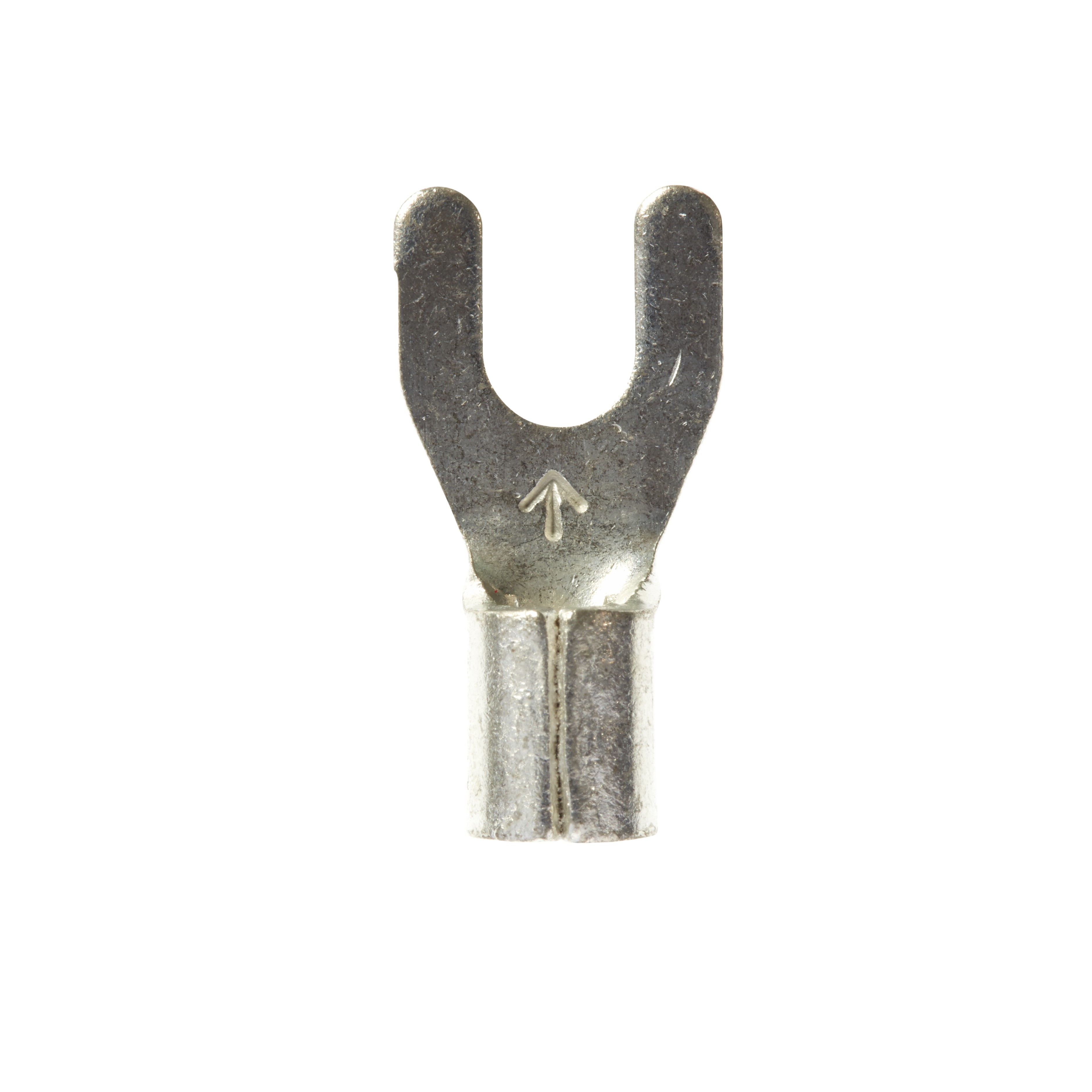

Specification	M10-8FK

Contact Finish	Tin
Contact Material	Copper, ETP
Features	Brazed Seam
Insulation	Non-Insulated
Length - Overall	0.73 in
Length - Ring Center to Termination	0.29 in
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	8 Stud
Terminal Type	Standard
Termination	Crimp
Width - Outer Edges	0.38 in
Wire Gauge (AWG) (Max)	12 AWG
Wire Gauge (AWG) (Min)	10 AWG

M10 Series

Part	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Features	Termination	Mounting Type	Terminal Type	Thickness	Width - Outer Edges	Insulation	Stud/Tab Size	Length - Overall	Length - Termination	Length - Ring Center to Termination	Contact Material	Contact Finish	Number of Wire Entries
3M Electronic Specialty M10-4R/SK	12 AWG	10 AWG	Brazed Seam	Crimp	Free Hanging (In-Line)	D-Shaped	0.04 in	0.28 in	Non-Insulated	4 Stud	0.68 in
3M Electronic Specialty M10-6FX-BOTTLE	12 AWG	10 AWG	Brazed Seam	Crimp	Free Hanging (In-Line)	Standard		0.38 in	Non-Insulated	6 Stud	0.73 in	0.25 in	0.29 in	Copper ETP	Tin
3M Electronic Specialty M10-6RX-BOTTLE	12 AWG	10 AWG	Brazed Seam	Crimp	Free Hanging (In-Line)	Circular	0.04 in	0.38 in	Non-Insulated	6 Stud	0.73 in			Copper ETP	Tin
3M Electronic Specialty M10-10FLX-BOTTLE	12 AWG	10 AWG	Brazed Seam	Crimp	Free Hanging (In-Line)	Snap Spring		0.32 in	Non-Insulated	10 Stud	0.73 in	0.25 in	0.28 in
3M Electronic Specialty M10-8RK	12 AWG	10 AWG	Brazed Seam	Crimp	Free Hanging (In-Line)	Circular	0.04 in	0.38 in	Non-Insulated	8 Stud	0.73 in
3M Electronic Specialty M10-6RK	12 AWG	10 AWG	Brazed Seam	Crimp	Free Hanging (In-Line)	Circular	0.04 in	0.38 in	Non-Insulated	6 Stud	0.73 in
3M Electronic Specialty M10-10FX-BOTTLE	12 AWG	10 AWG	Brazed Seam	Crimp	Free Hanging (In-Line)	Standard		0.38 in	Non-Insulated	10 Stud	0.73 in	0.25 in	0.29 in	Copper ETP	Tin
3M Electronic Specialty M10-6FBK	12 AWG	10 AWG	Brazed Seam	Crimp	Free Hanging (In-Line)	Standard		0.32 in	Non-Insulated	6 Stud	0.73 in		0.29 in	Copper ETP	Tin
3M Electronic Specialty M10BCX-BOTTLE	12 AWG	10 AWG		Crimp		Butt Splice Individual Openings Inline			Non-Insulated							2
3M Electronic Specialty M10-12RK	12 AWG	10 AWG	Brazed Seam	Crimp	Free Hanging (In-Line)	Circular	0.04 in	0.75 in	Non-Insulated	0.5 Stud	1.19 in
