Description
General part information
XUYBCO929LSP

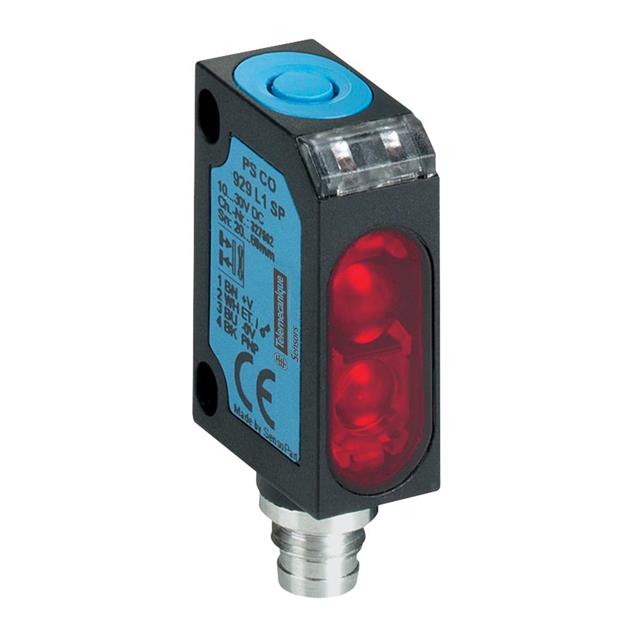

Reflective, Polarized Optical Sensor 39.37" (1m) PNP-NC/NO
Technical Specifications
Parameters and characteristics for this part
| Specification | XUYBCO929LSP |
|---|---|
| Connection Method | M8, Connector |
| Ingress Protection | IP67 |
| Light Source | Yellow LED, Green LED |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Output Configuration | NO, PNP-NC |
| Response Time | 3 ms |
| Sensing Distance | 39.37 " |
| Sensing Method | Polarized, Reflective |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 12 VDC |
