FFLI6U0277K--
ActiveKYOCERA AVX

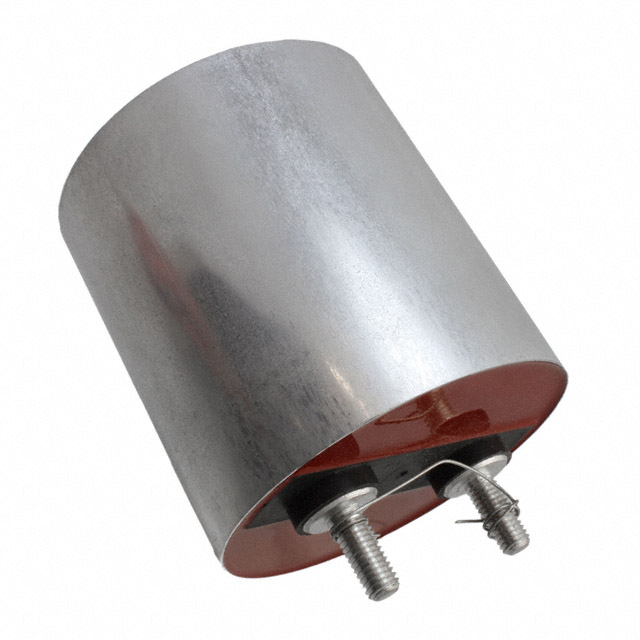

CAP FILM 270UF 10% 1.2KVDC RAD
FFLI6U0277K--
ActiveKYOCERA AVX
CAP FILM 270UF 10% 1.2KVDC RAD
Description
General part information
FFLI6U0277K--
270 µF Film Capacitor 1200V (1.2kV) Polypropylene (PP), Metallized Radial, Can
Technical Specifications
Parameters and characteristics for this part
| Specification | FFLI6U0277K-- |
|---|---|
| Applications | DC Filtering, DC Link |
| Capacitance | 270 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Height - Seated (Max) | 5.787 in |
| Lead Spacing | 1.772 in |
| Mounting Type | Chassis, Stud Mount |
| Operating Temperature (Max) | 95 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Size / Dimension Diameter | 3.622 in |
| Termination | Threaded, Male |
| Tolerance | 10 % |
| Voltage Rating - DC | 1200 V |
