Description
General part information

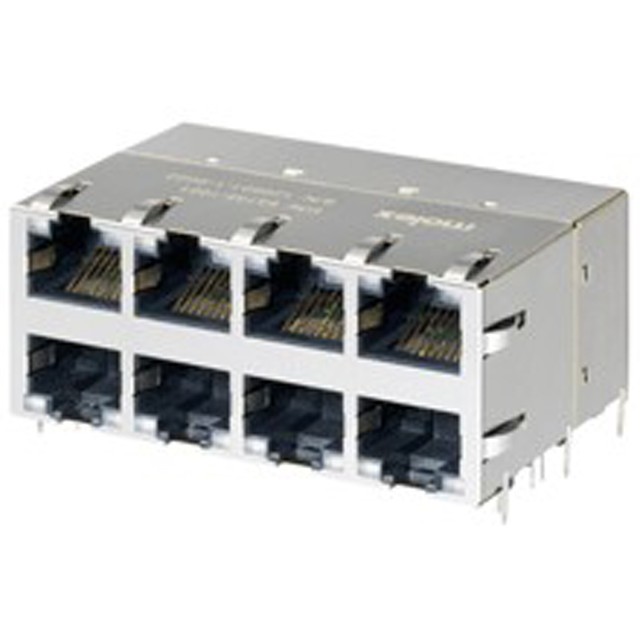

0857351001
CONN JACK 8PORT PCB
Technical Specifications
Parameters and characteristics for this part
| Specification | 0857351001 |
|---|---|
| Applications | AutoMDIX, Power over Ethernet+ (PoE+), 10/100/1000 Base-T |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Features | Board Guide |
| Height Above Board | 1.002 in |
| LED Color | Green - Green |
| Mounting Type | Through Hole |
| Number of Cores per Jack | 8 |
| Number of Ports | 8 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Orientation Angle | 90 ° |
| Orientation Direction | Right |
| Shielding | EMI Finger, Shielded |
| Tab Direction | Down, Up |
| Termination | Solder |
