Specification	L17RRD1F12400

Contact Finish Thickness	15 µin
Contact Form	Stamped
Contact Material	Copper Alloy
Contact Termination	Crimp
Contact Type	Female Socket
Features	Insulation Support
Type	Signal
Wire Gauge (AWG) (Max)	24 AWG
Wire Gauge (AWG) (Min)	19.5 AWG

L17RRD1 Series

Part	Type	Features	Contact Finish Thickness	Contact Material	Contact Finish	Contact Termination	Contact Form	Contact Type	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Contact Finish Thickness (string set options)	Contact Finish Thickness
Amphenol ICC (Commercial Products) L17RRD1M0210G	Signal	Insulation Support	15 µin	Copper Alloy	Gold	Crimp	Stamped	Male Pin	24 AWG	19.5 AWG
Amphenol ICC (Commercial Products) L17RRD1M142G	Signal	Insulation Support	30 µin	Copper Alloy	Gold	Crimp	Stamped	Male Pin	24 AWG	19.5 AWG
Amphenol ICC (Commercial Products) L17RRD1F1110K	Signal	Insulation Support	0	Copper Alloy		Crimp	Stamped	Female Socket	24 AWG	19.5 AWG	Flash	Flash
Amphenol ICC (Commercial Products) L17RRD1M022G	Signal	Insulation Support	15 µin	Copper Alloy	Gold	Crimp	Stamped	Male Pin	24 AWG	19.5 AWG
Amphenol ICC (Commercial Products) L17RRD1M0410K	Signal	Insulation Support	30 µin	Copper Alloy	Gold	Crimp	Stamped	Male Pin	24 AWG	19.5 AWG

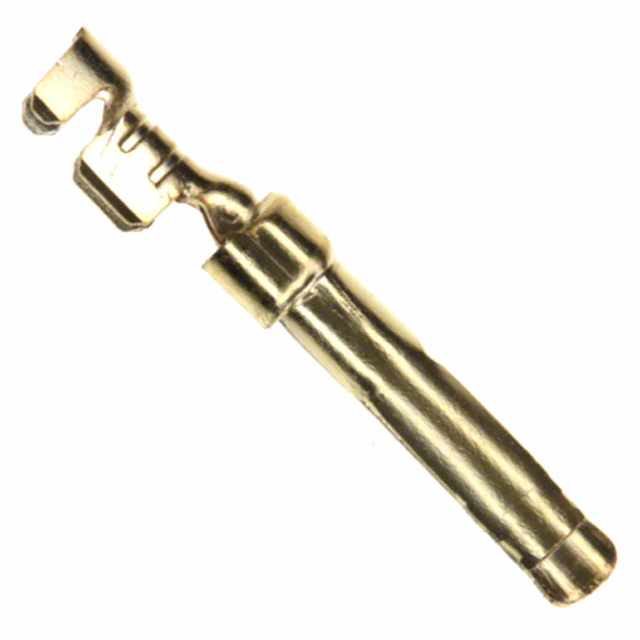

Amphenol ICC (Commercial Products) L17-RR-D1-F-02-100	Signal	Insulation Support	15 µin	Phosphor Bronze	Gold	Crimp	Stamped	Female Socket	24 AWG	19.5 AWG
Amphenol ICC (Commercial Products) L17RRD1F01400	Signal	Insulation Support	0	Copper Alloy	Gold	Crimp	Stamped	Female Socket	24 AWG	19.5 AWG	Flash	Flash
Amphenol ICC (Commercial Products) L17RRD1F112K	Signal	Insulation Support	0	Copper Alloy		Crimp	Stamped	Female Socket	24 AWG	19.5 AWG	Flash	Flash
Amphenol ICC (Commercial Products) L17RRD1M0110K	Signal	Insulation Support	0	Copper Alloy	Gold	Crimp	Stamped	Male Pin	24 AWG	19.5 AWG	Flash	Flash
Amphenol ICC (Commercial Products) L17RRD1M1110K	Signal	Insulation Support	0	Copper Alloy		Crimp	Stamped	Male Pin	24 AWG	19.5 AWG	Flash	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

L17RRD1F12400 | Datasheet
