Description

General part information

86532-000

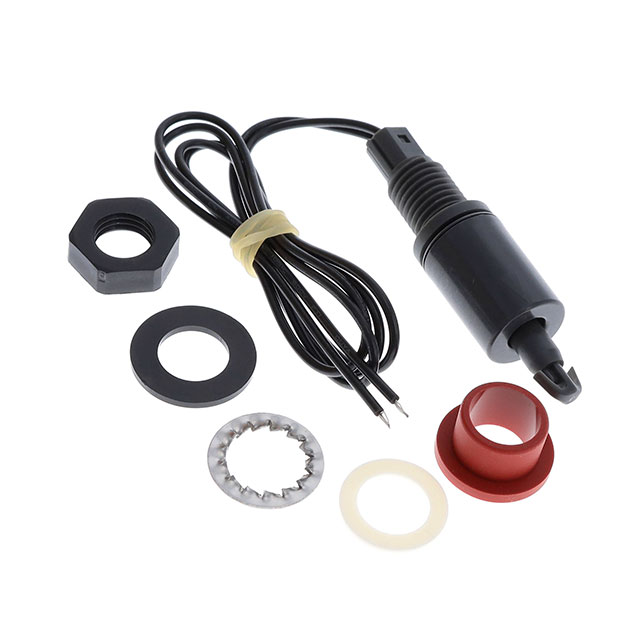

Liquid Level Sensor Switch SPST-NC/NO Output Cable Mount

Technical Specifications

Parameters and characteristics for this part

Specification86532-000
Current1 A
Material - Housing & PrismPP, Polypropylene
Mounting TypeCable Mount
Operating Temperature80 °C
Output ConfigurationSPST-NC, NO
Output TypeSwitch
TypeLiquid
Voltage Rating250 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

86532-000 | Datasheet
