Description
General part information

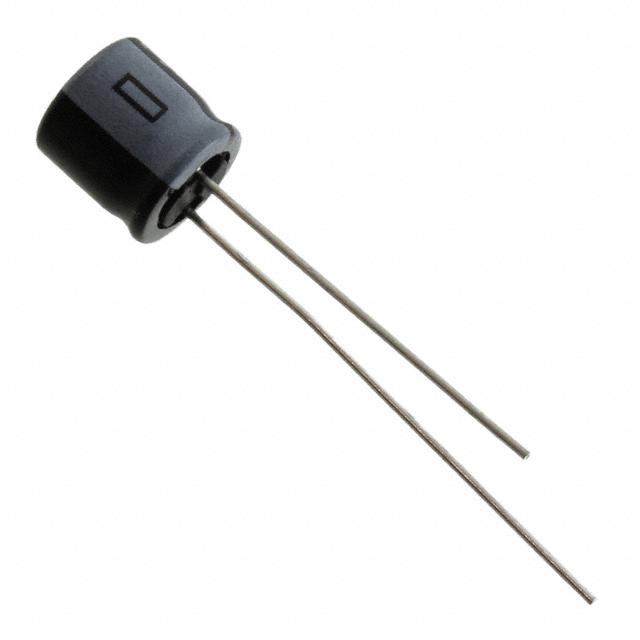

UML0G101MDD
100 µF 4 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | UML0G101MDD |
|---|---|
| Applications | General Purpose |
| Capacitance | 100 µF |
| Height - Seated (Max) | 0.236 in |
| Lead Spacing | 0.098 in |
| Lifetime | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 84 mA, 56 mA |
| Size / Dimension Diameter | 0.248 in |
| Tolerance | 20 % |
| Voltage - Rated | 4 V |
