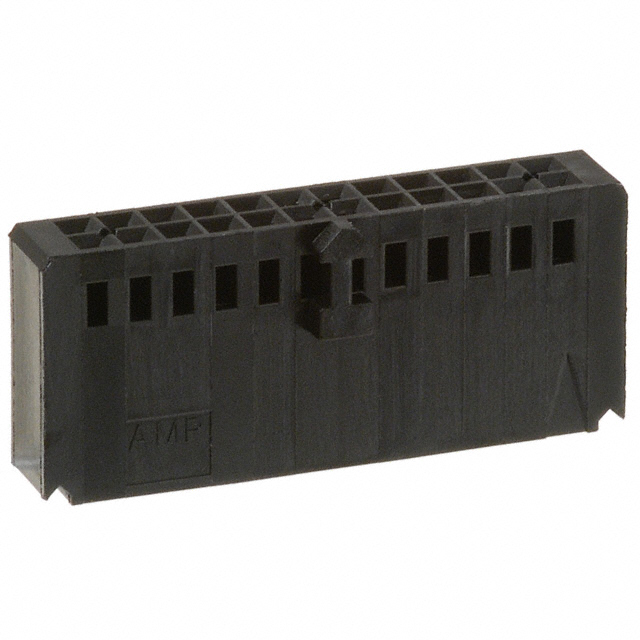

102387-5
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 24POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
102387-5
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 24POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 102387-5 | 102387 Series |
|---|---|---|
| Color | Black | Black |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Features | Polarizing Key | Polarizing Key |
| Insulation Material | Thermoplastic | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 24 | 14 - 64 |
| Number of Positions | - | 16 |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
| Row Spacing | 2.54 mm | 2.54 mm |
| Row Spacing [x] | 0.1 in | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.37 | |
| 10 | $ 3.00 | |||
| 25 | $ 2.99 | |||
| 50 | $ 2.96 | |||
| 100 | $ 2.67 | |||
| 250 | $ 2.65 | |||
| 500 | $ 2.45 | |||
| 1000 | $ 2.19 | |||
| 2500 | $ 2.02 | |||
102387 Series
CONN RCPT HSG 14POS 2.54MM
| Part | Number of Rows | Note | Contact Termination | Row Spacing [x] | Row Spacing | Pitch [x] | Pitch [x] | Number of Positions | Contact Type | Features | Mounting Type | Insulation Material | Color | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 102387-2 | 2 | Contacts Not Included | Crimp | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | 14 | Female Socket | Polarizing Key | Free Hanging (In-Line) | Thermoplastic | Black | Receptacle | -65 ░C | 105 ░C | |
TE Connectivity AMP Connectors 102387-4 | 2 | Contacts Not Included | Crimp | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | 20 | Female Socket | Polarizing Key | Free Hanging (In-Line) | Thermoplastic | Black | Receptacle | -65 ░C | 105 ░C | |
TE Connectivity AMP Connectors 102387-9 | 2 | Contacts Not Included | Crimp | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | 40 | Female Socket | Polarizing Key | Free Hanging (In-Line) | Thermoplastic | Black | Receptacle | -65 ░C | 105 ░C | |
TE Connectivity AMP Connectors 102387-3 | 2 | Contacts Not Included | Crimp | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | Female Socket | Polarizing Key | Free Hanging (In-Line) | Thermoplastic | Black | Receptacle | -65 ░C | 105 ░C | 16 | |
TE Connectivity AMP Connectors 1-102387-2 | 2 | Contacts Not Included | Crimp | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | 64 | Female Socket | Polarizing Key | Free Hanging (In-Line) | Thermoplastic | Black | Receptacle | -65 ░C | 105 ░C | |
TE Connectivity AMP Connectors 1-102387-5 | 2 | Contacts Not Included | Crimp | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | 22 positions | Female Socket | Polarizing Key | Free Hanging (In-Line) | Black | Receptacle | ||||
TE Connectivity AMP Connectors 102387-5 | 2 | Contacts Not Included | Crimp | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | 24 | Female Socket | Polarizing Key | Free Hanging (In-Line) | Thermoplastic | Black | Receptacle | -65 ░C | 105 ░C |
Description
General part information
102387 Series
24 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
