BCH2MM1022CA6C
ActiveSCHNEIDER ELECTRIC
130MM, 1KW, IP65, WO KEY, MIL CO
BCH2MM1022CA6C
ActiveSCHNEIDER ELECTRIC
130MM, 1KW, IP65, WO KEY, MIL CO
Description
General part information
BCH2MM1022CA6C

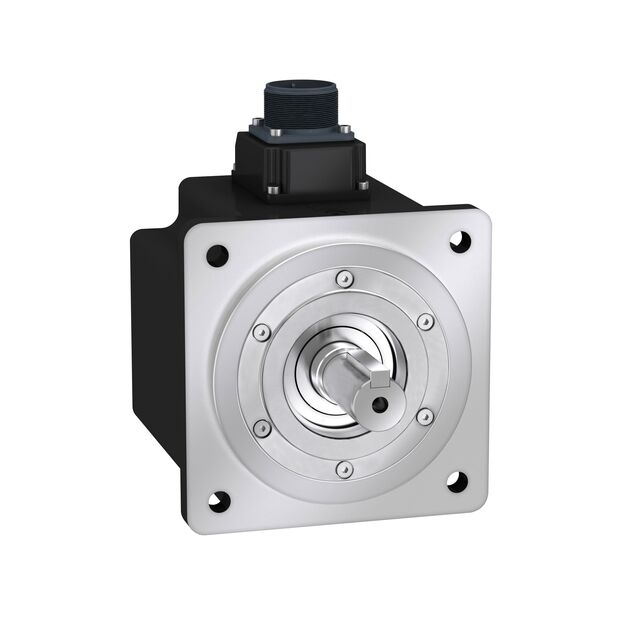

AC Motor Servomotor 3000 RPM 1kW Absolute 220VAC
Technical Specifications
Parameters and characteristics for this part
| Specification | BCH2MM1022CA6C |
|---|---|
| Diameter - Shaft | 0.87 in |
| Encoder Type | Absolute |
| Features | Oil Seal |
| Function | Servomotor |
| Length - Shaft and Bearing | 2.17 in |
| Mounting Hole Spacing | 4.33 in |
| Operating Temperature (Max) | 40 °C |
| Operating Temperature (Min) | -20 °C |
| Power - Rated | 1 kW |
| RPM | 3000 RPM |
| Size / Dimension Length | 5.12 in |
| Size / Dimension Shape | Square |
| Size / Dimension Width | 5.12 in |
| Termination Style | Connector |
| Torque - Rated (mNm) | 4770 mNm |
| Torque - Rated (oz-in) | 675.5 oz-in |
| Type | AC Motor |
| Voltage - Rated | 220 VAC |
