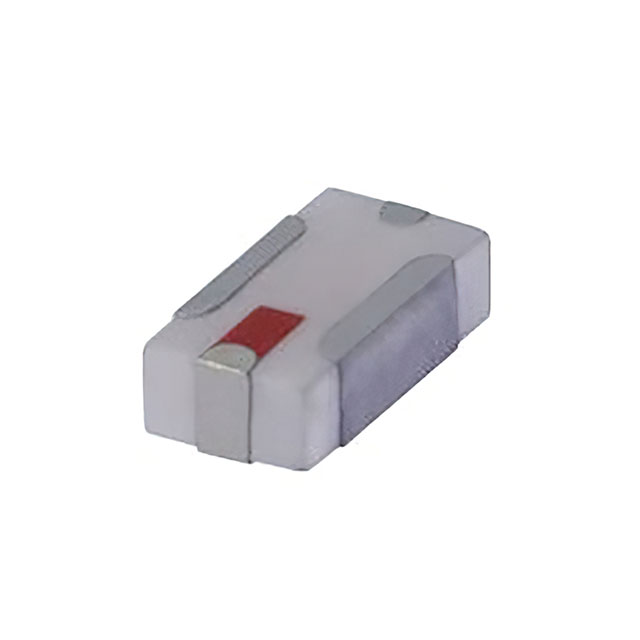

LFCN-8440+
ActiveMini-Circuits
LTCC LOW PASS FILTER, DC - 8440
LFCN-8440+
ActiveMini-Circuits
LTCC LOW PASS FILTER, DC - 8440
Description
General part information
LFCN-8440+
9.429GHz Low Pass Ceramic Filter 50Ohm 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | LFCN-8440+ |
|---|---|
| Filter Type | Low Pass |
| Frequency | 9.429 GHz |
| Height (Max) | 0.037 in |
| Impedance | 50 Ohm |
| Insertion Loss | 2.5 dB |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.063 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
