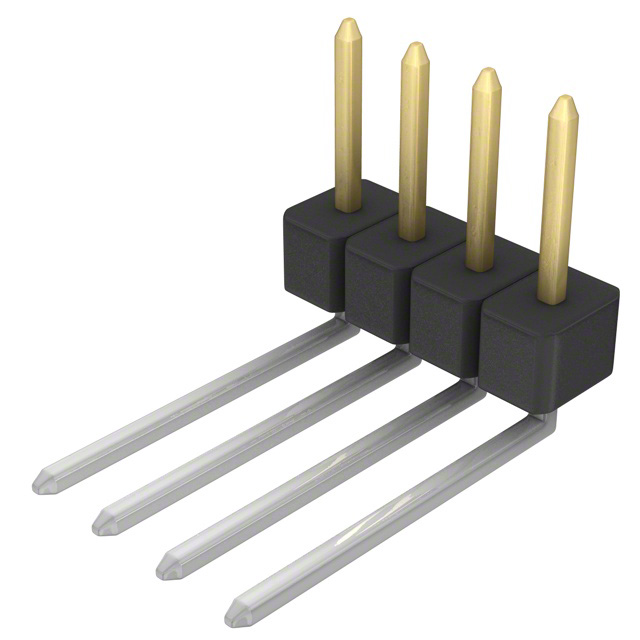

PBC04SBDN
ActiveSullins Connector Solutions
CONN HEADER R/A 4POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
PBC04SBDN
ActiveSullins Connector Solutions
CONN HEADER R/A 4POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PBC04SBDN |
|---|---|
| Connector Type | Breakaway, Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Finish Thickness - Post | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin |
| Contact Length - Mating | 5.84 mm |
| Contact Length - Mating [x] | 0.23 in |
| Contact Length - Post [x] | 0.4 in |
| Contact Length - Post [x] | 10.16 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 3.56 mm |
| Insulation Height | 0.14 in |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Shrouding | Unshrouded |
| Style | Board to Board, Cable |
| Termination | Solder |
PBC04 Series
| Part | Number of Positions Loaded | Contact Finish - Post | Material Flammability Rating | Contact Material | Termination | Insulation Color | Insulation Height | Insulation Height | Contact Length - Mating [x] | Contact Length - Mating [x] | Number of Positions | Insulation Material | Fastening Type | Contact Shape | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Pitch - Mating | Pitch - Mating | Style | Contact Type | Contact Length - Post [x] | Contact Length - Post [x] | Mounting Type | Connector Type | Number of Rows | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Shrouding | Overall Contact Length | Overall Contact Length | Contact Length - Mating | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sullins Connector Solutions | All | Tin | UL94 V-0 | Phosphor Bronze | Solder | Black | 3.56 mm | 0.14 in | 0.318 " | 8.08 mm | 4 | Polybutylene Terephthalate (PBT) | Push-Pull | Square | 2.54 µm | 100 µin | 0.1 in | 2.54 mm | Board to Board Cable | Male Pin | 5.08 mm | 0.2 in | Through Hole Right Angle | Breakaway Header | 1 | Gold | 10 çin | 0.25 çm | 125 °C | -65 ░C | 3 A | Unshrouded | |||||||
Sullins Connector Solutions | All | Tin | UL94 V-0 | Phosphor Bronze | Solder | Black | 2.54 mm | 0.1 in | 0.23 in | 8 | Polybutylene Terephthalate (PBT) | Push-Pull | Square | 2.54 µm | 100 µin | 0.1 in | 2.54 mm | Board to Board Cable | Male Pin | 20.83 mm | 0.82 in | Through Hole | Breakaway Header | 2 | Gold | 10 çin | 0.25 çm | 125 °C | -65 ░C | 3 A | Unshrouded | 1.15 in | 29.21 mm | 5.84 mm | 2.54 mm | 0.1 in | |||
Sullins Connector Solutions | All | Tin | UL94 V-0 | Phosphor Bronze | Solder | Black | 2.54 mm | 0.1 in | 0.318 " | 8.08 mm | 4 | Polybutylene Terephthalate (PBT) | Push-Pull | Square | 2.54 µm | 100 µin | 0.1 in | 2.54 mm | Board to Board Cable | Male Pin | 8.13 mm | 0.32 in | Through Hole | Breakaway Header | 1 | Gold | 10 çin | 0.25 çm | 125 °C | -65 ░C | 3 A | Unshrouded | 0.738 " | 18.75 mm | |||||
Sullins Connector Solutions | All | Tin | UL94 V-0 | Phosphor Bronze | Solder | Black | 2.54 mm | 0.1 in | 0.23 in | 8 | Polybutylene Terephthalate (PBT) | Push-Pull | Square | 2.54 µm | 100 µin | 0.1 in | 2.54 mm | Board to Board Cable | Male Pin | Through Hole | Breakaway Header | 2 | Gold | 10 çin | 0.25 çm | 125 °C | -65 ░C | 3 A | Unshrouded | 0.85 in | 21.59 mm | 5.84 mm | 2.54 mm | 0.1 in | 13.21 mm | 0.52 " | |||
Sullins Connector Solutions | All | Tin | UL94 V-0 | Phosphor Bronze | Solder | Black | 3.56 mm | 0.14 in | 0.23 in | 4 | Polybutylene Terephthalate (PBT) | Push-Pull | Square | 2.54 µm | 100 µin | 0.1 in | 2.54 mm | Board to Board Cable | Male Pin | 5.08 mm | 0.2 in | Through Hole Right Angle | Breakaway Header | 1 | Gold | 10 çin | 0.25 çm | 125 °C | -65 ░C | 3 A | Unshrouded | 5.84 mm | |||||||
Sullins Connector Solutions | All | Tin | UL94 V-0 | Phosphor Bronze | Solder | Black | 2.54 mm | 0.1 in | 0.23 in | 4 | Polybutylene Terephthalate (PBT) | Push-Pull | Square | 2.54 µm | 100 µin | 0.1 in | 2.54 mm | Board to Board Cable | Male Pin | 10.67 mm | 0.42 in | Through Hole | Breakaway Header | 1 | Gold | 10 çin | 0.25 çm | 125 °C | -65 ░C | 3 A | Unshrouded | 0.75 in | 19.05 mm | 5.84 mm | |||||
Sullins Connector Solutions | All | Tin | UL94 V-0 | Phosphor Bronze | Solder | Black | 2.54 mm | 0.1 in | 0.318 " | 8.08 mm | 8 | Polybutylene Terephthalate (PBT) | Push-Pull | Square | 2.54 µm | 100 µin | 0.1 in | 2.54 mm | Board to Board Cable | Male Pin | 3.05 mm | 0.12 in | Through Hole | Breakaway Header | 2 | Gold | 10 çin | 0.25 çm | 125 °C | -65 ░C | 3 A | Unshrouded | 0.538 " | 13.67 mm | 2.54 mm | 0.1 in | |||
Sullins Connector Solutions | All | Tin | UL94 V-0 | Phosphor Bronze | Solder | Black | 3.56 mm | 0.14 in | 0.23 in | 4 | Polybutylene Terephthalate (PBT) | Push-Pull | Square | 2.54 µm | 100 µin | 0.1 in | 2.54 mm | Board to Board Cable | Male Pin | 10.16 mm | 0.4 in | Through Hole Right Angle | Breakaway Header | 1 | Gold | 10 çin | 0.25 çm | 125 °C | -65 ░C | 3 A | Unshrouded | 5.84 mm | |||||||
Sullins Connector Solutions | All | Tin | UL94 V-0 | Phosphor Bronze | Solder | Black | 2.54 mm | 0.1 in | 0.318 " | 8.08 mm | 8 | Polybutylene Terephthalate (PBT) | Push-Pull | Square | 2.54 µm | 100 µin | 0.1 in | 2.54 mm | Board to Board Cable | Male Pin | 10.67 mm | 0.42 in | Through Hole | Breakaway Header | 2 | Gold | 10 çin | 0.25 çm | 125 °C | -65 ░C | 3 A | Unshrouded | 0.838 in | 21.29 mm | 2.54 mm | 0.1 in | |||
Sullins Connector Solutions | All | Tin | UL94 V-0 | Phosphor Bronze | Solder | Black | 2.54 mm | 0.1 in | 0.318 " | 8.08 mm | 4 | Polybutylene Terephthalate (PBT) | Push-Pull | Square | 2.54 µm | 100 µin | 0.1 in | 2.54 mm | Board to Board Cable | Male Pin | 10.67 mm | 0.42 in | Through Hole | Breakaway Header | 1 | Gold | 10 çin | 0.25 çm | 125 °C | -65 ░C | 3 A | Unshrouded | 0.838 in | 21.29 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.13 | |
| 10 | $ 0.86 | |||
| 100 | $ 0.66 | |||
| 500 | $ 0.56 | |||
| 1000 | $ 0.52 | |||
| 5000 | $ 0.46 | |||
| 10000 | $ 0.46 | |||
Description
General part information
PBC04 Series
Connector Header Through Hole, Right Angle 4 position 0.100" (2.54mm)
Documents
Technical documentation and resources
No documents available
