Specification	TJ1871060000G

Color	Black
Contact Material	Copper
Contact Mating Finish	Tin
Current - UL	20 A
Features	Retention Latches (Non-Wire Side)
Housing Material	Thermoplastic
Insulation Height	0.594 in
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	18
Operating Temperature (Max)	115 °C
Operating Temperature (Min)	-40 °C
Pitch	0.197 in
Plug Wire Entry Angle	180 °
Positions Per Level	18
Screw Size	M3
Termination Style	Screw
Torque - Screw	0.56 Nm
Type	Female Sockets, Plug
Voltage - UL	300 V
Wire Gauge or Range - AWG (Max)	24 AWG
Wire Gauge or Range - AWG (Min)	12 AWG
Wire Strip Length (Max)	8 mm
Wire Strip Length (Min)	7 mm

TJ18 Series

Part	Mounting Type	Voltage - IEC	Wire Gauge or Range - AWG (Min)	Wire Gauge or Range - AWG (Max)	Voltage - UL	Positions Per Level	Number of Levels	Color	Wire Gauge or Range - mm²	Features	Pitch	Type	Operating Temperature (Min)	Operating Temperature (Max)	Current - IEC	Termination Style	Contact Mating Finish	Plug Wire Entry Angle	Current - UL	Number of Positions	Material Flammability Rating	Wire Strip Length (Min)	Wire Strip Length (Max)	Screw Size	Contact Material	Housing Material	Wire Gauge or Range - mm² (Maximum)	Wire Gauge or Range - mm² (Minimum)	Torque - Screw	Insulation Height
McGill Microwave Systems TJ1811840000G	Free Hanging (In-Line)	300 V	16 AWG	28 AWG	300 V	18	1	Gray	1.5 mm²	Strain Relief	0.138 in	Female Sockets Plug	-40 °C	115 °C	10.5 A	Screw	Tin	180 °	10 A	18	UL94 V-0	6 mm	7 mm	M2	Phosphor Bronze	Thermoplastic
McGill Microwave Systems TJ1851840000G	Free Hanging (In-Line)	300 V	12 AWG	24 AWG	300 V	18	1	Gray		Retention Latches (Non-Wire Side) Strain Relief	5.08 mm	Female Sockets Plug	-40 °C	115 °C	20 A	Screw	Tin	180 °	20 A	18	UL94 V-0	7 mm	8 mm	M3	Copper	Thermoplastic	2.5 mm²	0.34 mm²	0.56 Nm
McGill Microwave Systems TJ1811030000G	Free Hanging (In-Line)	300 V	16 AWG	28 AWG	300 V	18	1	Black	1.5 mm²		0.138 in	Female Sockets Plug	-40 °C	115 °C	10.5 A	Screw	Tin	180 °	10 A	18	UL94 V-0	6 mm	7 mm	M2	Phosphor Bronze	Thermoplastic				0.437 in
McGill Microwave Systems TJ1850530000G	Free Hanging (In-Line)					18	1					Female Sockets Plug				Screw		180 °		18

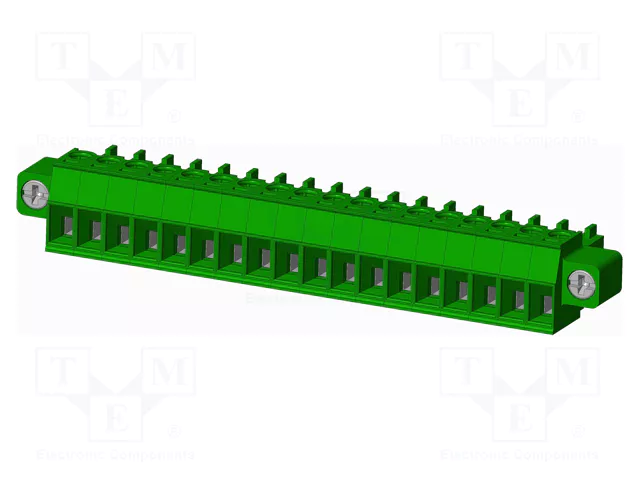

McGill Microwave Systems TJ1831520000G	Free Hanging (In-Line)	300 V	16 AWG	28 AWG	300 V	18	1	Green	1.5 mm²	Mating Flange	0.15 in	Female Sockets Plug	-40 °C	115 °C	10.5 A	Screw	Tin	180 °	10 A	18	UL94 V-0	6 mm	7 mm	M2	Phosphor Bronze	Thermoplastic				0.437 in
McGill Microwave Systems TJ1811820000G	Free Hanging (In-Line)	300 V	16 AWG	28 AWG	300 V	18	1	Gray	1.5 mm²	Mating Flange	0.138 in	Female Sockets Plug	-40 °C	115 °C	10.5 A	Screw	Tin	180 °	10 A	18	UL94 V-0	6 mm	7 mm	M2	Phosphor Bronze	Thermoplastic				0.437 in
McGill Microwave Systems TJ1851020000G	Free Hanging (In-Line)	300 V	12 AWG	24 AWG	300 V	18	1	Black		Mating Flange Retention Latches (Non-Wire Side)	5.08 mm	Female Sockets Plug	-40 °C	115 °C	20 A	Screw	Tin	180 °	20 A	18	UL94 V-0	7 mm	8 mm	M3	Copper	Thermoplastic	2.5 mm²	0.34 mm²	0.56 Nm	0.594 in
McGill Microwave Systems TJ1831840000G	Free Hanging (In-Line)	300 V	16 AWG	28 AWG	300 V	18	1	Gray	1.5 mm²	Strain Relief	0.15 in	Female Sockets Plug	-40 °C	115 °C	10.5 A	Screw	Tin	180 °	10 A	18	UL94 V-0	6 mm	7 mm	M2	Phosphor Bronze	Thermoplastic

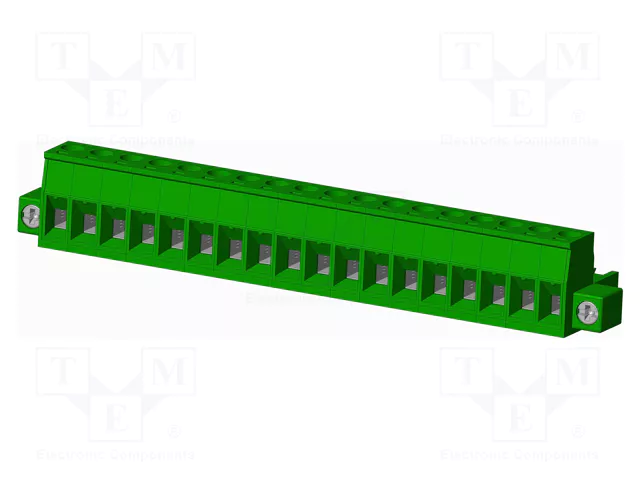

McGill Microwave Systems TJ1851520000G	Free Hanging (In-Line)	300 V	12 AWG	24 AWG	300 V	18	1	Green		Mating Flange Retention Latches (Non-Wire Side)	5.08 mm	Female Sockets Plug	-40 °C	115 °C	20 A	Screw	Tin	180 °	20 A	18	UL94 V-0	7 mm	8 mm	M3	Copper	Thermoplastic	2.5 mm²	0.34 mm²	0.56 Nm	0.594 in
McGill Microwave Systems TJ1831540000G	Free Hanging (In-Line)	300 V	16 AWG	28 AWG	300 V	18	1	Green	1.5 mm²	Strain Relief	0.15 in	Female Sockets Plug	-40 °C	115 °C	10.5 A	Screw	Tin	180 °	10 A	18	UL94 V-0	6 mm	7 mm	M2	Phosphor Bronze	Thermoplastic
