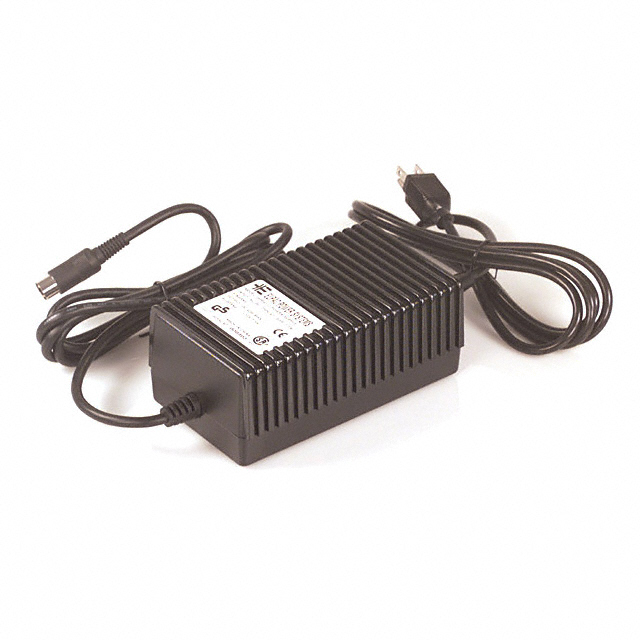

WRI3031-D5
ObsoleteInventus Power
AC/DC DSKTP ADAPTER 5V +/-12 30W
WRI3031-D5
ObsoleteInventus Power
AC/DC DSKTP ADAPTER 5V +/-12 30W
Description
General part information
WRI3031-D5
5V, 12V, -12V 30 W AC/DC External Desktop (Class I) Adapter Cord Input
Technical Specifications
Parameters and characteristics for this part
| Specification | WRI3031-D5 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) Options | 1.5A, 2A, 500mA |
| Efficiency | 75 % |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| Operating Temperature (Max) | 40 °C |
| Operating Temperature (Min) | 0 °C |
| Output Connector | 5 Pin, DIN |
| Output Connector Pin Count | 5 |
| Power (Watts) | 30 W |
| Region Utilized | North America |
| Size / Dimension Height | 2.6 in |
| Size / Dimension Length | 6.5 in |
| Size / Dimension Width | 3.85 in |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Output | 12 V, -12 V, 5 VDC |
| Weight | 2.1 lb |
