CTX15-1-R
ActiveEaton - Electronics Division
INDUCT ARRAY 2 COIL 14.4UH SMD
CTX15-1-R
ActiveEaton - Electronics Division
INDUCT ARRAY 2 COIL 14.4UH SMD
Description
General part information
CTX15-1-R

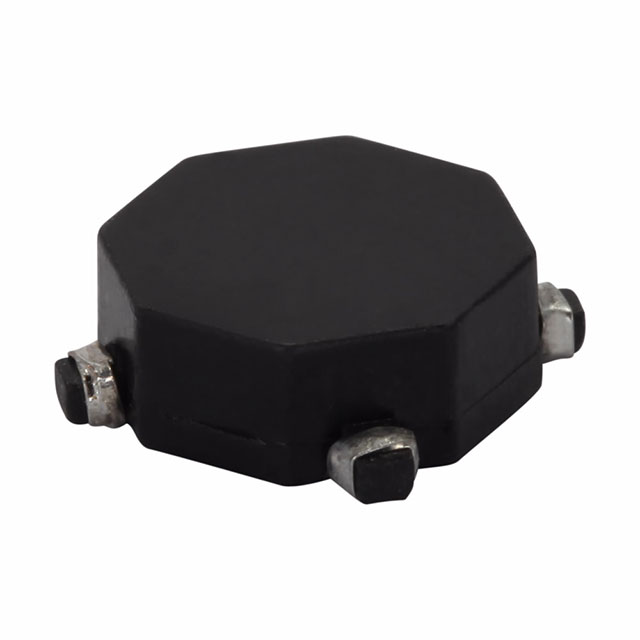

Unshielded 2 Coil Inductor Array 57.6 µH Inductance - Connected in Series 14.4 µH Inductance - Connected in Parallel 80mOhm Max DC Resistance (DCR) - Parallel 1.1 A Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | CTX15-1-R |
|---|---|
| Current Rating - Parallel | 1.1 A |
| Current Rating - Series | 550 mA |
| DC Resistance (DCR) - Parallel (Max) | 80 mOhm |
| DC Resistance (DCR) - Series (Max) | 319 mOhm |
| Height | 0.165 in |
| Inductance - Connected In Parallel | 14.4 µH |
| Inductance - Connected In Series | 57.6 µH |
| Mounting Type | Surface Mount |
| Number of Coils | 2 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.45 in |
| Size / Dimension Width | 0.45 in |
| Tolerance | 20 % |
