Specification	XC6SLX45-N3CSG324I

Mounting Type	Surface Mount
Number of I/O	218
Number of LABs/CLBs	3411
Number of Logic Elements/Cells	43661
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C
Package / Case	324-LFBGA, CSPBGA
Package Length	15 mm
Package Name	324-CSPBGA
Package Width	15 mm
Total RAM Bits	2138112 bits
Voltage - Supply (Maximum)	1.26 V
Voltage - Supply (Minimum)	1.14 V

XC6SLX45 Series

Part	Number of LABs/CLBs	Package Width	Package Name	Package Length	Number of Logic Elements/Cells	Package / Case	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Number of I/O	Total RAM Bits	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	For Use With/Related Products	Suggested Programming Environment	Interconnect System	Type	Contents	Platform	Utilized IC / Part
AMD / Xilinx XC6SLX45-2FGG484CES	3411	23 mm	484-FBGA	23 mm	43661	484-BBGA	1.14 V	1.26 V	316	2138112 bits	85 °C	0 °C	Surface Mount
AMD / Xilinx XC6SLX45T-4CSG484C	3411	19 mm	484-CSPBGA	19 mm	43661	484-FBJA CSPBGA	1.14 V	1.26 V	296	2138112 bits	85 °C	0 °C	Surface Mount
AMD / Xilinx XC6SLX45T-3FG484C	3411	23 mm	484-FBGA	23 mm	43661	484-BBGA	1.14 V	1.26 V	296	2138112 bits	85 °C	0 °C	Surface Mount

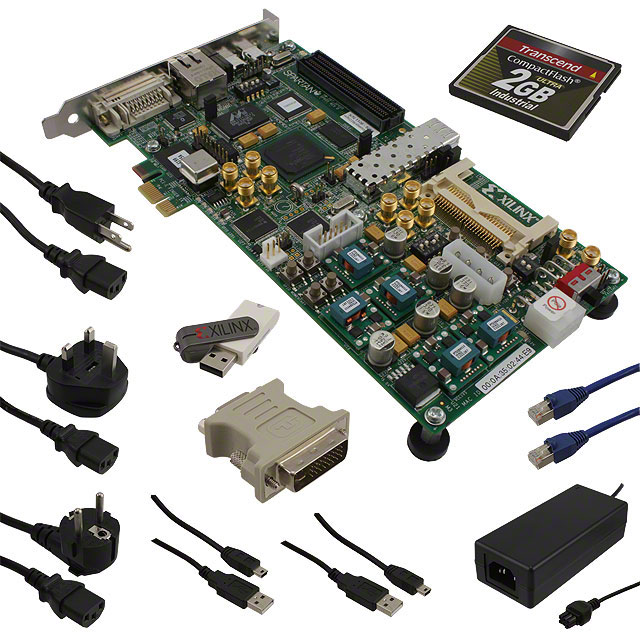

AMD / Xilinx DK-S6-EMBD-G														XC6SLX45T	ISE	FMC	FPGA	Board Cable Power Supply	Spartan-6 LXT FPGA Embedded PCIe Card	XC6SLX45T
AMD / Xilinx XC6SLX45-N3CSG484C	3411	19 mm	484-CSPBGA	19 mm	43661	484-FBJA CSPBGA	1.14 V	1.26 V	320	2138112 bits	85 °C	0 °C	Surface Mount
AMD / Xilinx XC6SLX45-N3CSG324C	3411	15 mm	324-CSPBGA	15 mm	43661	324-LFBGA CSPBGA	1.14 V	1.26 V	218	2138112 bits	85 °C	0 °C	Surface Mount
AMD / Xilinx XC6SLX45-L1FGG484C	3411	23 mm	484-FBGA	23 mm	43661	484-BBGA	1.14 V	1.26 V	316	2138112 bits	85 °C	0 °C	Surface Mount
AMD / Xilinx XC6SLX45T-3FG484I	3411	23 mm	484-FBGA	23 mm	43661	484-BBGA	1.14 V	1.26 V	296	2138112 bits	100 °C	-40 °C	Surface Mount
AMD / Xilinx XC6SLX45-3CSG484I	3411	19 mm	484-CSPBGA	19 mm	43661	484-FBJA CSPBGA	1.14 V	1.26 V	320	2138112 bits	100 °C	-40 °C	Surface Mount
AMD / Xilinx XC6SLX45-L1CSG324C	3411	15 mm	324-CSPBGA	15 mm	43661	324-LFBGA CSPBGA	1.14 V	1.26 V	218	2138112 bits	85 °C	0 °C	Surface Mount
