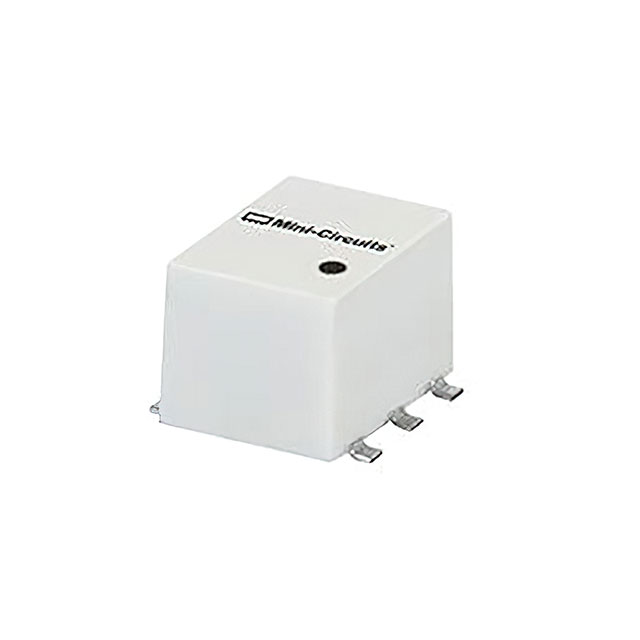

ADT16-6T+
ActiveMini-Circuits
1:16 CORE & WIRE TRANSFORMER, 0.
ADT16-6T+
ActiveMini-Circuits
1:16 CORE & WIRE TRANSFORMER, 0.
Description
General part information
ADT16-6T+
RF Balun 100kHz ~ 70MHz 1:16 6-SMD, Flat Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | ADT16-6T+ |
|---|---|
| Frequency Range (Max) | 70 MHz |
| Frequency Range (Min) | 100 kHz |
| Impedance Ratio | 1:16 |
| Insertion Loss (Max) | 3 dB |
| Mounting Type | Surface Mount |
| Package / Case | Flat Leads, 6-SMD |
| Phase Difference | 2 ° |
| Return Loss (Min) | 5.66 dB |
