Description
General part information

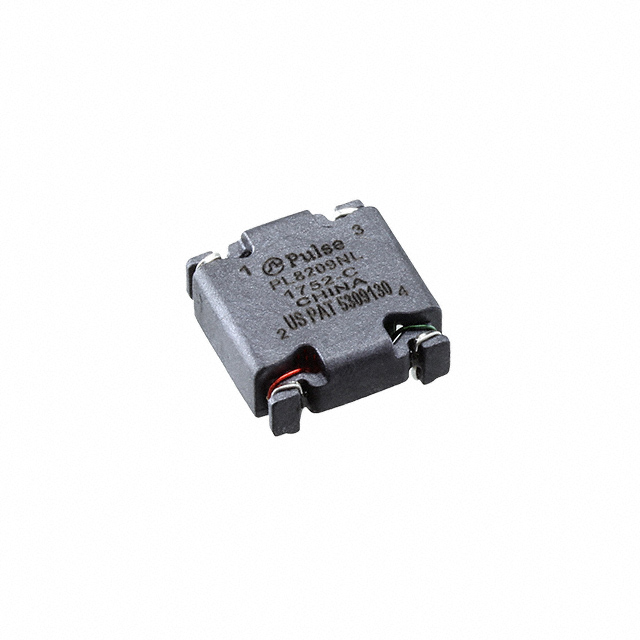

PL8209NLT
2 Line Common Mode Choke Surface Mount 1.63A DCR 110mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | PL8209NLT |
|---|---|
| Current Rating (Max) | 1.63 A |
| DC Resistance (DCR) (Max) | 110 mOhm |
| Filter Type | Power Line |
| Height (Max) | 0.215 " |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -55 °C |
| Package Name | Horizontal |
| Pad Count | 4 PC Pad |
| Size / Dimension Length | 0.5 in |
| Size / Dimension Width | 0.5 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
