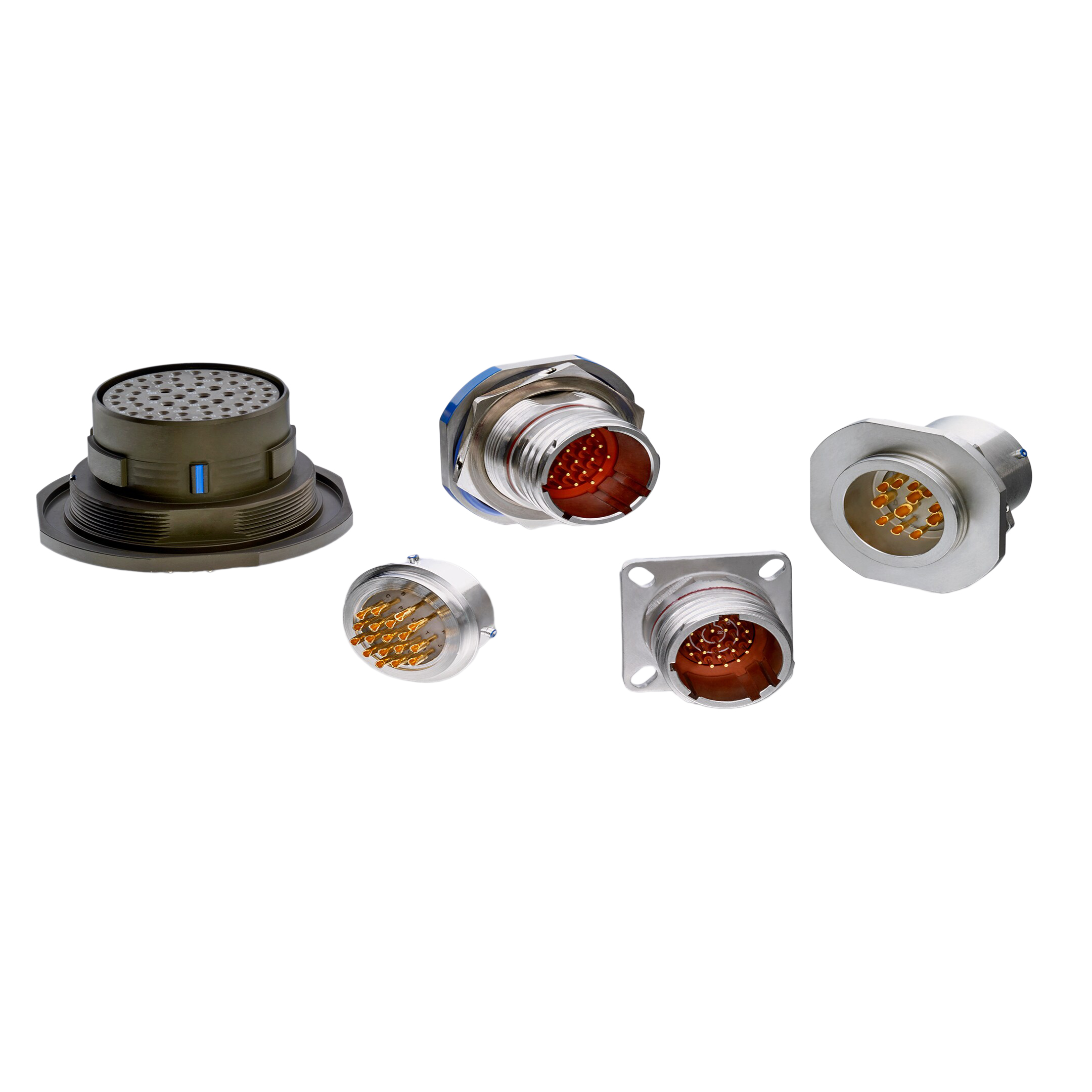

Specification	DBC50H-10-6PN

Applications	Military
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Nickel Iron Alloy
Fastening Type	Bayonet Lock
Features	Hermetically Sealed
Ingress Protection	Environment Sealed
Mounting Feature	Flange
Mounting Type	Panel Mount
Number of Positions	6
Operating Temperature (Max)	200 °C
Operating Temperature (Min)	-55 °C
Orientation	N (Normal)
Primary Material	Metal
Shell Finish	Tin
Shell Material	Steel
Shell Size - Insert Length	10 mm
Shell Size - Insert Width	6 mm
Termination	Solder Cup

DBC50H Series

Part	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Color	Shell Finish	Connector Type	Termination	Shielding	Mounting Feature	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Shell Material	Contact Material	Orientation	Number of Positions	Features	Applications	Qualification	Contact Finish - Mating	Fastening Type	Primary Material	Insert Material	Shell Size - Insert Width	Shell Size - Insert Length	Ingress Protection
TE Connectivity AMP Connectors DBC50H-14-18PN [V003]	14 S	18	Silver	Tin	Male Pins Receptacle	Solder Cup	Unshielded	Flange	200 °C	-65 °C	Panel Mount	Steel	Nickel Iron Alloy	N (Normal)	18	Hermetically Sealed	Aerospace	MIL-DTL-26482 Series II	Gold	Bayonet Lock	Metal	Glass
TE Connectivity AMP Connectors DBC50H-14-4PN			Silver	Tin	Male Pins Receptacle	Solder Cup	Unshielded	Flange	200 °C	-65 °C	Panel Mount	Steel	Nickel Iron Alloy	N (Normal)	4	Hermetically Sealed	Aerospace	MIL-DTL-26482 Series II	Gold	Bayonet Lock	Metal	Glass	4 mm	14 mm
TE Connectivity AMP Connectors DBC50H-8-33PN [V001]	8	33	Silver	Tin	Male Pins Receptacle	Solder Cup	Unshielded	Flange	200 °C	-65 °C	Panel Mount	Steel	Nickel Iron Alloy	N (Normal)	3	Hermetically Sealed	Aerospace	MIL-DTL-26482 Series II	Gold	Bayonet Lock	Metal	Glass
TE Connectivity AMP Connectors DBC50H-22-55PN [V001]	22	55	Silver	Tin	Male Pins Receptacle	Solder Cup	Unshielded	Flange	200 °C	-65 °C	Panel Mount	Steel	Nickel Iron Alloy	N (Normal)	55	Hermetically Sealed	Aerospace	MIL-DTL-26482 Series II	Gold	Bayonet Lock	Metal	Glass
TE Connectivity AMP Connectors DBC50H-22-55PN [V003]	22	55	Silver	Tin	Male Pins Receptacle	Solder Cup	Unshielded	Flange	200 °C	-65 °C	Panel Mount	Steel	Nickel Iron Alloy	N (Normal)	55	Hermetically Sealed	Aerospace	MIL-DTL-26482 Series II	Gold	Bayonet Lock	Metal	Glass
TE Connectivity AMP Connectors DBC50H-22-41PN [V003]	22	41	Silver	Tin	Male Pins Receptacle	Solder Cup	Unshielded	Flange	200 °C	-65 °C	Panel Mount	Steel	Nickel Iron Alloy	N (Normal)	41	Hermetically Sealed	Aerospace	MIL-DTL-26482 Series II	Gold	Bayonet Lock	Metal	Glass
TE Connectivity AMP Connectors DBC50H-14-5PN [V001]			Silver	Tin	Male Pins Receptacle	Solder Cup	Unshielded	Flange	200 °C	-65 °C	Panel Mount	Steel	Nickel Iron Alloy	N (Normal)	5	Hermetically Sealed	Aerospace	MIL-DTL-26482 Series II	Gold	Bayonet Lock	Metal	Glass	5 mm	14 mm
TE Connectivity AMP Connectors DBC50H-8-33PN [V0B1]	8	33	Silver		Male Pins Receptacle	Solder Cup	Unshielded	Flange	200 °C	-55 °C	Panel Mount	Stainless Steel	Copper Alloy	N (Normal)	3		Aerospace Military	MIL-DTL-26482 Series II	Gold	Bayonet Lock	Metal	Silicone			Environment Resistant
TE Connectivity AMP Connectors DBC50H-18-11PN			Silver	Tin	Male Pins Receptacle	Solder Cup	Unshielded	Flange	200 °C	-65 °C	Panel Mount	Steel	Nickel Iron Alloy	N (Normal)	11	Hermetically Sealed	Aerospace	MIL-DTL-26482 Series II	Gold	Bayonet Lock	Metal	Glass	11 mm	18 mm
TE Connectivity AMP Connectors DBC50H-22-41PN [V001]	22	41	Silver	Tin	Male Pins Receptacle	Solder Cup	Unshielded	Flange	200 °C	-65 °C	Panel Mount	Steel	Nickel Iron Alloy	N (Normal)	41	Hermetically Sealed	Aerospace	MIL-DTL-26482 Series II	Gold	Bayonet Lock	Metal	Glass

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

ENG_CD_DBC50H-x-xPx_E.pdf

DBC50H-*-*P*

Hermetic Connectors

Datasheet

DBC50H-10-6PN | Datasheet
