Description
General part information

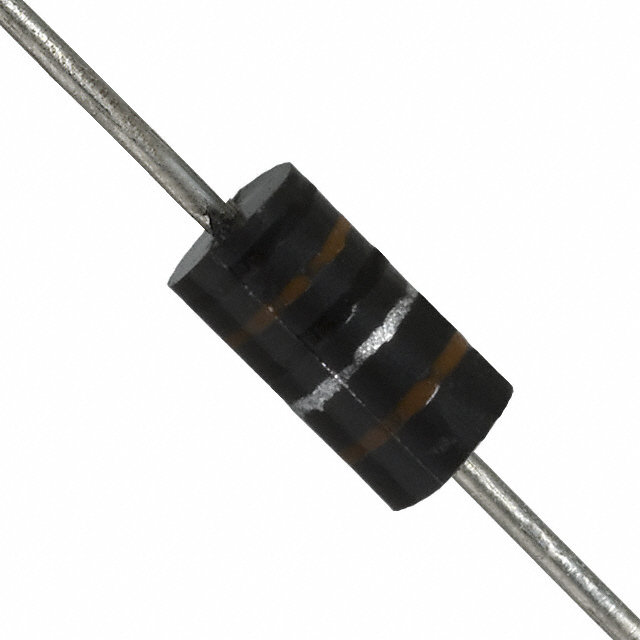

WHAR10FET
100 mOhms ±1% 0.5W, 1/2W Through Hole Resistor Axial Wirewound
Technical Specifications
Parameters and characteristics for this part
| Specification | WHAR10FET |
|---|---|
| Composition | Wirewound |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 500 mW |
| Power (Watts) Options | 1/2W |
| Resistance | 100 mOhms |
| Size / Dimension Diameter | 0.1 in |
| Size / Dimension Length | 0.2 in |
| Temperature Coefficient | 90 ppm/°C |
| Tolerance | 1 % |
