6-2375948-2
ActiveTE Connectivity AMP Connectors

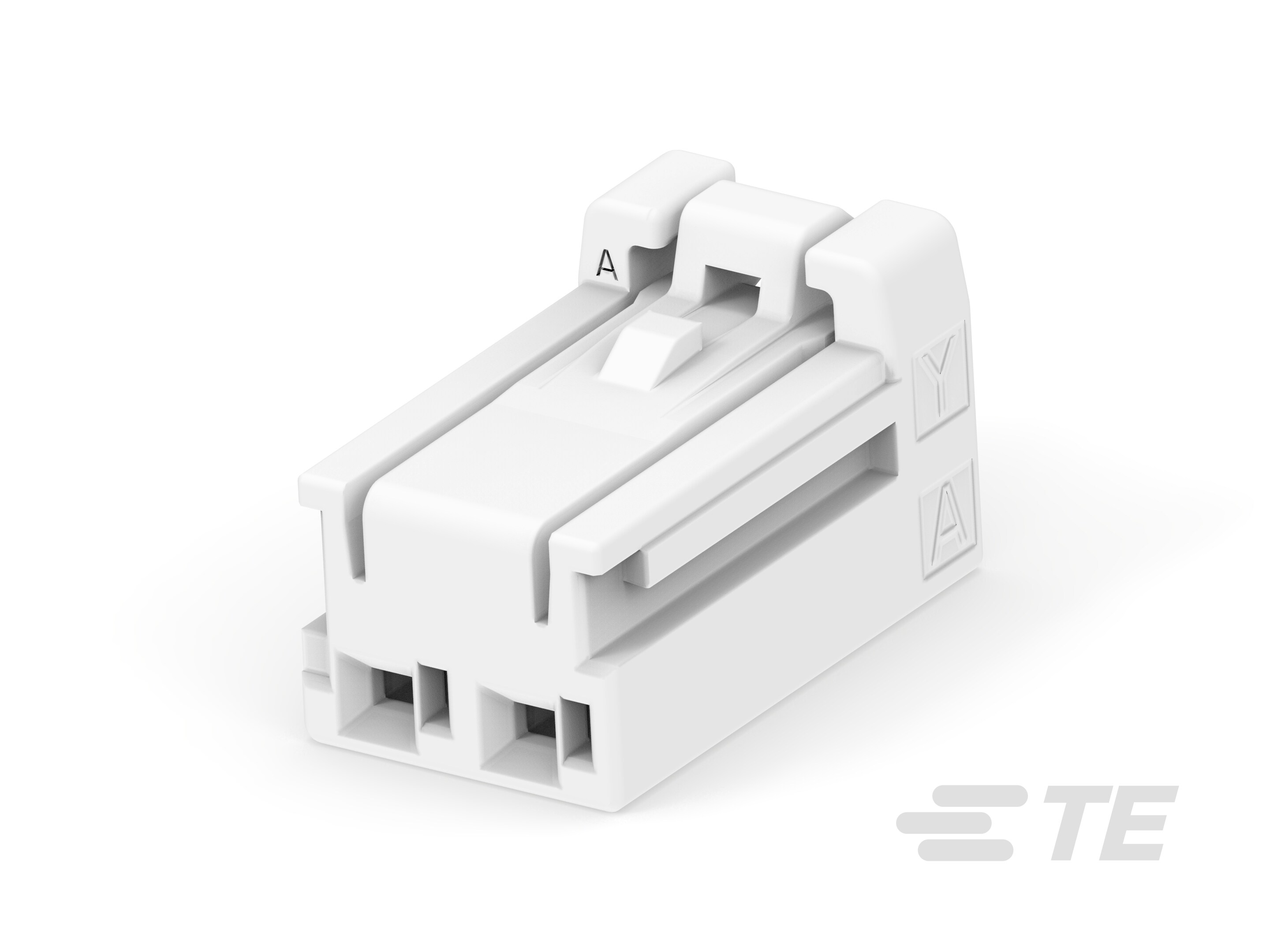

HEADERS & WIRE HOUSINGS DYNAMIC D1000 SLIM REC HSG 2P Y KEY NA
6-2375948-2
ActiveTE Connectivity AMP Connectors
HEADERS & WIRE HOUSINGS DYNAMIC D1000 SLIM REC HSG 2P Y KEY NA
Description
General part information
6-2375948-2
Housing, Receptacle, Wire-to-Wire, 2 Position, 2.7 mm [.106 in] Centerline, Crimp, 1 Row, Natural, Wire & Cable, Power & Signal
Technical Specifications
Parameters and characteristics for this part
| Specification | 6-2375948-2 |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Locking Ramp |
| Insulation Material | Polyester, Thermoplastic, Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.106 in |
