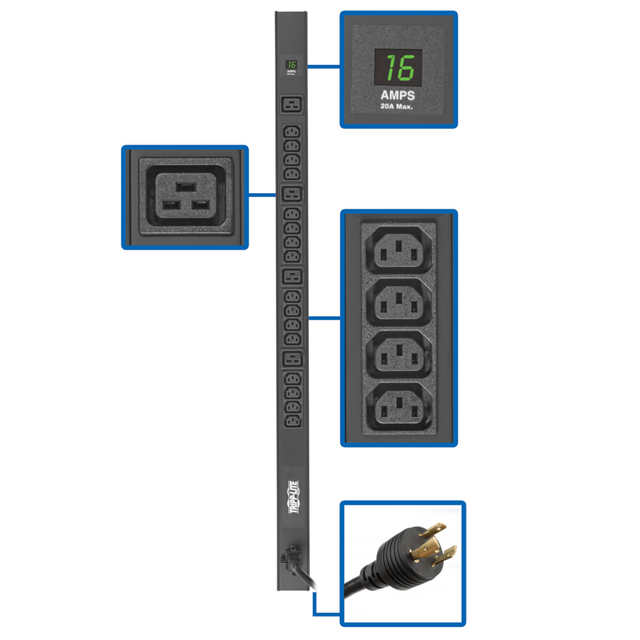

PDUMV20HV-36
ActiveEaton Tripp Lite
3.23.8KW 200240V SINGLE-PHASE ME
PDUMV20HV-36
ActiveEaton Tripp Lite
3.23.8KW 200240V SINGLE-PHASE ME
Description
General part information
PDUMV20HV-36
3.23.8KW 200240V SINGLE-PHASE ME
Technical Specifications
Parameters and characteristics for this part
| Specification | PDUMV20HV-36 |
|---|---|
| AC Outlets (Count) | 20 count |
| Approval Agency | UL, NOM, CSA, CE, IEC |
| Connector - AC Input | IEC 320-C20, NEMA L6-20P |
| Connector - AC Output | C19, IEC 320-C13 |
| Connector - AC Output Quantity (C19) | 4 pcs |
| Connector - AC Output Quantity (IEC 320-C13) | 16 pcs |
| Cord Length | 10 ft |
| Current - Max | 20 A |
| Features | Load Meter |
| Housing Material | Aluminum |
| Mounting Type | Rack, Vertical |
| Overload Protection | None |
| Region Utilized | North America |
| Type | PDU (Power Distribution Unit) |
| Voltage - Input | 230 V, 208 VAC |
