CP502550665-2
ActiveSame Sky (Formerly CUI Devices)

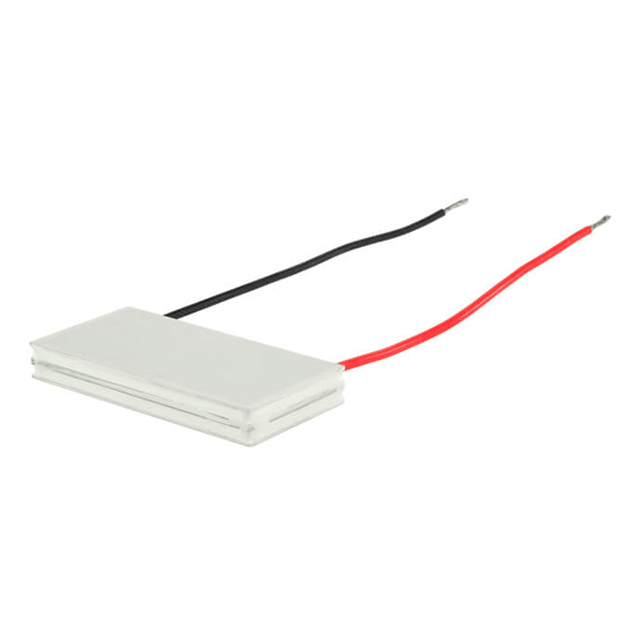

PELTIER, 25.5 X 50 X 6.65 MM, 5.
CP502550665-2
ActiveSame Sky (Formerly CUI Devices)
PELTIER, 25.5 X 50 X 6.65 MM, 5.
Description
General part information
CP502550665-2
Peltier Module 23.0W @ 27°C 5 A 100°C
Technical Specifications
Parameters and characteristics for this part
| Specification | CP502550665-2 |
|---|---|
| Current - Max | 5 A |
| Delta Tmax | 82 °C |
| Features | Silicone RTV, Lead Wires, Sealed |
| Height | 6.65 mm |
| Maximum Power Dissipation (Qmax) | 23 W |
| Number of Stages | 2 |
| Operating Temperature | 100 °C |
| Resistance | 2.4 Ohm |
| Size / Dimension Length | 50 mm |
| Size / Dimension Shape | Rectangular |
| Size / Dimension Width | 26.25 mm |
| Type | TEC (Thermoelectric Cooler) |
| Voltage - Max | 12.8 V |
