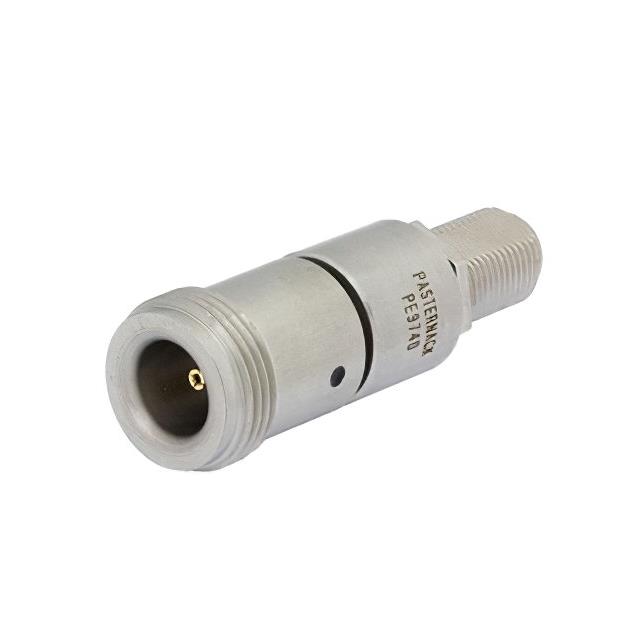

PE9740
ActivePasternack
75 OHM N FEMALE TO 75 OHM F FEMA
PE9740
ActivePasternack
75 OHM N FEMALE TO 75 OHM F FEMA
Description
General part information
PE9740
Adapter Coaxial Connector N Jack, Female Socket To F Jack, Female Socket 75 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | PE9740 |
|---|---|
| Adapter Series | N to F |
| Adapter Type | Jack to Jack |
| Body Finish | Nickel |
| Body Material | Brass, Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold, Nickel |
| Center Gender | Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | N Jack, Female Socket |
| Convert To (Adapter End) Gender | Female Socket |
| Convert To (Adapter End) Type | F Jack |
| Fastening Type | Threaded |
| Frequency - Max | 3 GHz |
| Impedance | 75 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -65 °C |
| Style | Straight |
