012320188
ActiveRose Enclosures
BOX ALUM 9.13"L X 7.95"W
012320188
ActiveRose Enclosures
BOX ALUM 9.13"L X 7.95"W
Description
General part information
012320188

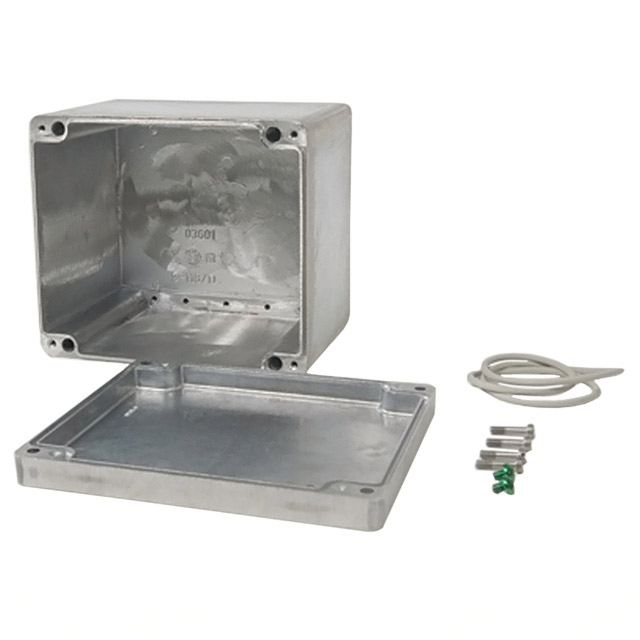

Box Metal, Aluminum Unpainted Cover Included 9.134" L x 7.953" W (232.00mm x 202.00mm) X 7.126" (181.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 012320188 |
|---|---|
| Area (L x W) | 72.5 in² |
| Color | Unpainted |
| Container Type | Box |
| Design | Cover Included |
| Features | Watertight |
| Height | 7.126 in |
| Material | Metal, Aluminum |
| Ratings | UL-508, NEMA 1, 2, 4X, IP66, 4 |
| Size / Dimension Length | 9.134 in |
| Size / Dimension Width | 7.953 in |
| Thickness | 0.197 in |
| Weight | 9.2 lbs |
