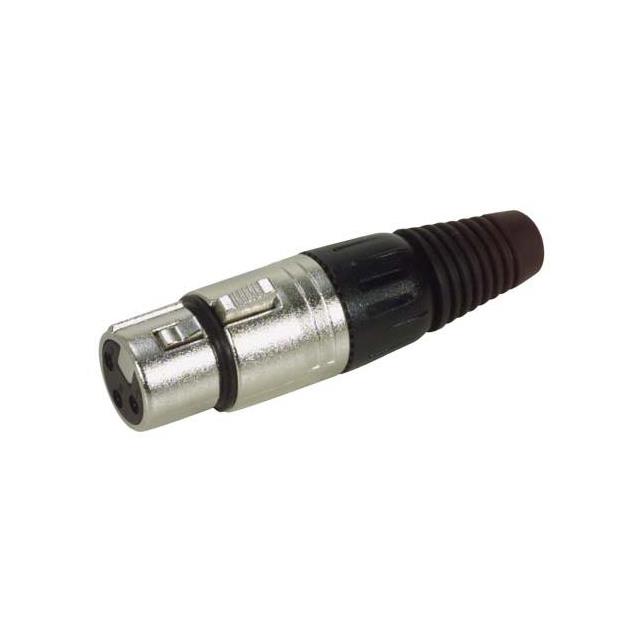

CON-XLR-F
ActivePasternack
XLR 3 PIN CONN FEMALE
CON-XLR-F
ActivePasternack
XLR 3 PIN CONN FEMALE
Description
General part information
CON-XLR-F
3 Position Circular Connector Plug, Female Sockets Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | CON-XLR-F |
|---|---|
| Applications | Audio |
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Nickel |
| Contact Finish Thickness - Mating | 50 µin |
| Fastening Type | Latch Lock |
| Features | Strain Relief |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 3 |
| Orientation | Keyed |
| Shell Size - Insert | XLR |
| Shielding | Unshielded |
| Termination | Solder Cup |
