42581-2

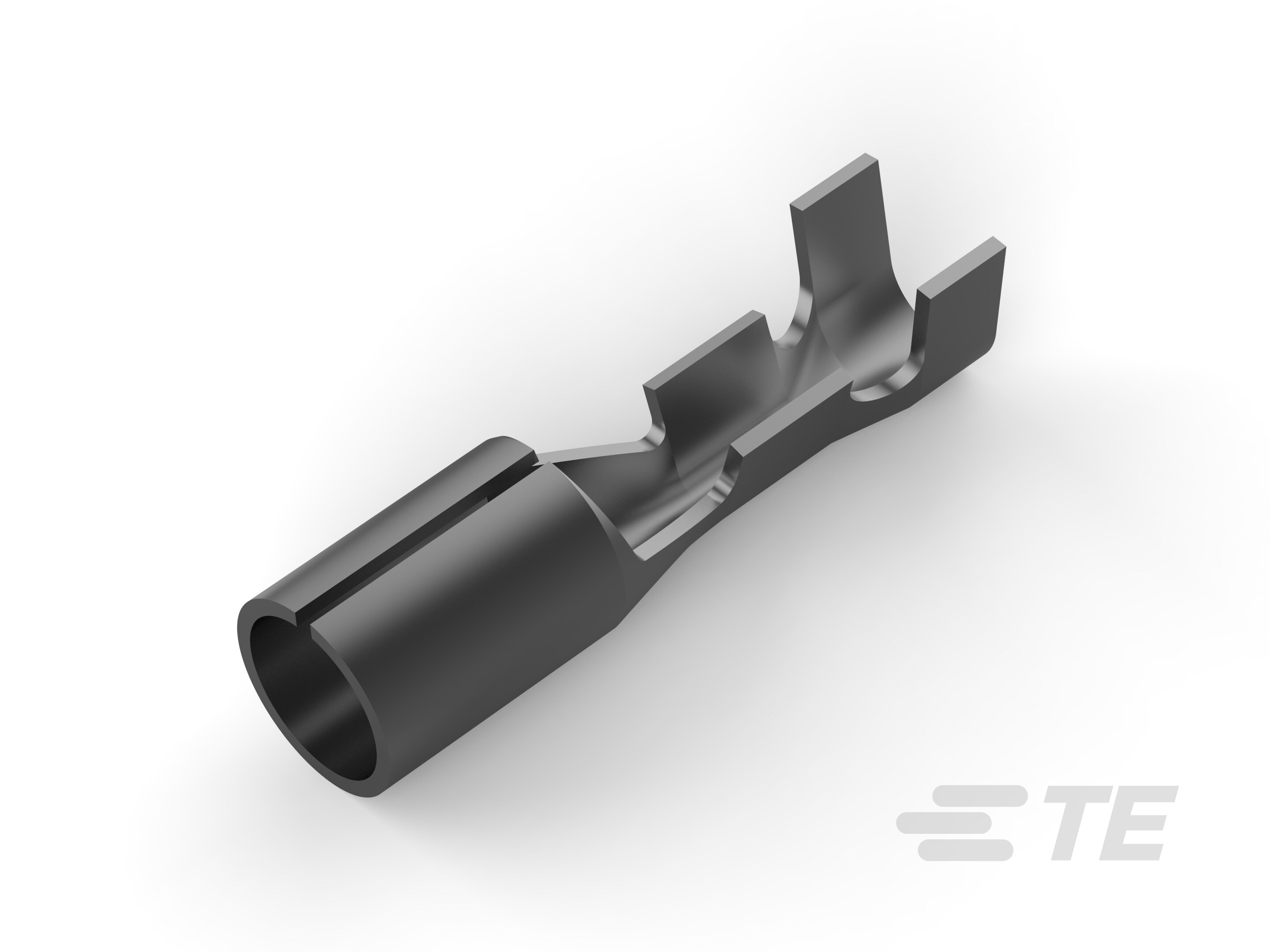

Shur-Plug, 3.96 mm [.156 in] Pin Diameter, 22 – 18 AWG, .3 – .8 mm² Wire, 642 – 1624 CMA, Open Barrel, Tin Plating, SHUR-PLUG 156
Technical Specifications
Parameters and characteristics for this part
| Specification | 42581-2 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Diameter - Barrel | 0.156 in |
| Insulation | Non-Insulated |
| Length - Barrel | 0.25 in |
| Length - Overall | 0.69 in |
| Terminal Type | Receptacle (Socket), Female |
| Termination | Crimp |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 18 AWG |
