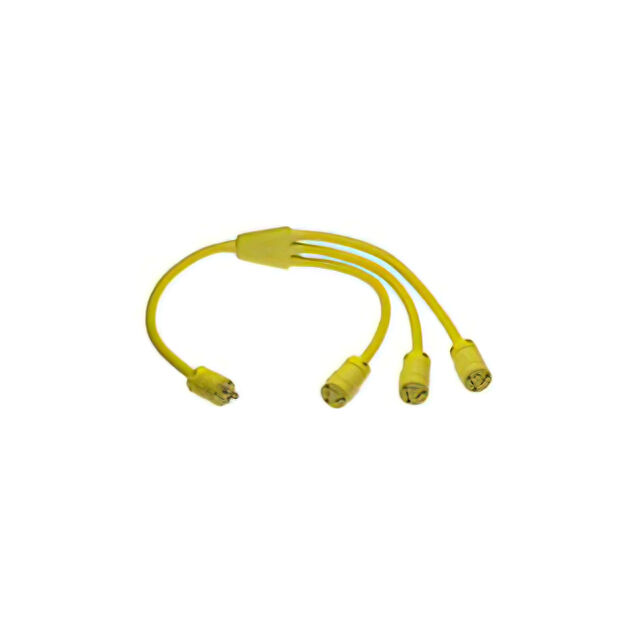

Specification	1301540055

1st Connector	NEMA L5-15P
2nd Connector	NEMA L5-15R
2nd Connector Count	3
Color	Yellow
Cord Type	SOOW
Current Rating	15 A
Length	3 ft
Number of Conductors	3
Shielding	Unshielded
Style	Female Sockets (Slots), Male Pins (Blades)
Voltage Rating	125 V

130154 Series

Part	Number of Conductors	Voltage Rating	Cord Type	1st Connector	Shielding	Length	Style	Wire Gauge	Current Rating	Color	2nd Connector	Operating Temperature (Max)	Operating Temperature (Min)	2nd Connector Count	Features	Approved Countries	Approval Agency Marking
Molex 1301540050	3	250 V	SOOW	NEMA 6-20P	Unshielded	3 ft	Female Sockets (Slots) Male Pins (Blades)	12 AWG	20 A	Yellow	NEMA 6-20R	75 °C	-40 °C
Molex 1301540071	3	125 V	SJOW	NEMA L5-20P	Unshielded	3 ft	Female Sockets (Slots) Male Pins (Blades)		20 A	Yellow	NEMA L5-20R			2 pcs
Molex 1301540108
Molex 1301540016
Molex 1301540041	3	250 V	SOOW	NEMA 6-20P	Unshielded	3 ft	Female Sockets (Slots) Male Pins (Blades)	12 AWG	20 A	Yellow
Molex 1301540060	3	125 V	SOOW	NEMA L5-15P		3 ft	Female Sockets (Slots) Male Pins (Blades)	12 AWG	15 A	Yellow	NEMA L5-15R	75 °C	-40 °C	2 pcs	Covers Industrial Environments IP65/66/67 Locking Outdoor Use Strain Relief W-Adapter Watertight	Canada United States	CSA NSF UL
Molex 1301540053
Molex 1301540087
Molex 1301540069	3	125 V	SJOW	NEMA L5-20P	Unshielded	3 ft	Female Sockets (Slots) Male Pins (Blades)		20 A	Yellow	NEMA L5-20R			3
Molex 1301540049	2	125 V	SJOW	NEMA 5-15P	Unshielded	3 ft	Female Sockets (Slots) Male Pins (Blades)		15 A	Yellow	NEMA 5-15R
