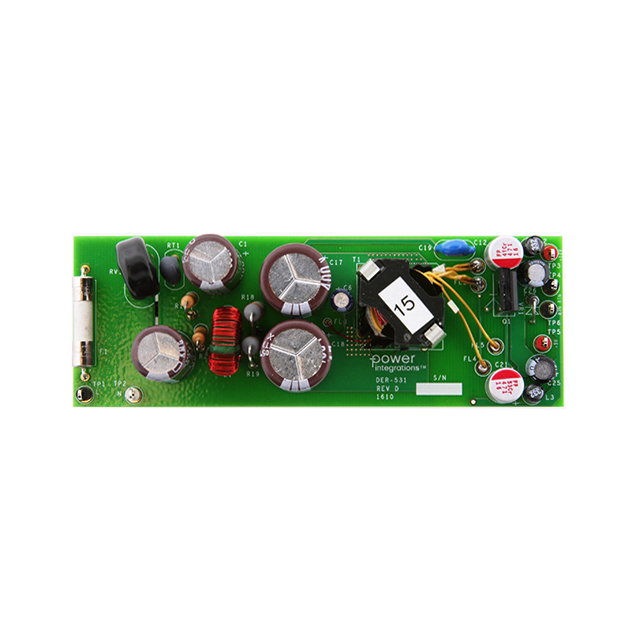

RDK-531
ObsoletePOWER INTEGRATIONS
DUAL OUTPUT 17.5 W POWER SUPPLY
RDK-531
ObsoletePOWER INTEGRATIONS
DUAL OUTPUT 17.5 W POWER SUPPLY
Description
General part information
RDK-531
INN2904K InnoSwitch™-EP AC/DC, Primary and Secondary Side 1, Isolated Outputs Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | RDK-531 |
|---|---|
| Board Type | Fully Populated |
| Contents | Board |
| Current - Output (Max) | 1.25 A |
| Current - Output (Min) | 0.5 A |
| Isolated Output Count | 1 |
| Main Purpose | Primary and Secondary Side, AC/DC |
| Output Type | Isolated |
| Power - Output | 17.5 W |
| Regulator Topology | Flyback |
| Supplied Contents | Board(s) |
| Total Output Count | 1 |
| Utilized IC / Part | INN2904K |
| Voltage - Input (AC) Maximum | 484 VAC |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Output | 5 VDC, 12 V |
