TERM, WIRE PIN, PIDG, 12 - 10, -ASI-165049

165049

Active
TE Connectivity AMP Connectors

TERM, WIRE PIN, PIDG, 12 - 10, -ASI

Find alt
TERM, WIRE PIN, PIDG, 12 - 10, -ASI-165049

165049

Active
TE Connectivity AMP Connectors

TERM, WIRE PIN, PIDG, 12 - 10, -ASI

Find alt

Description

General part information

165049

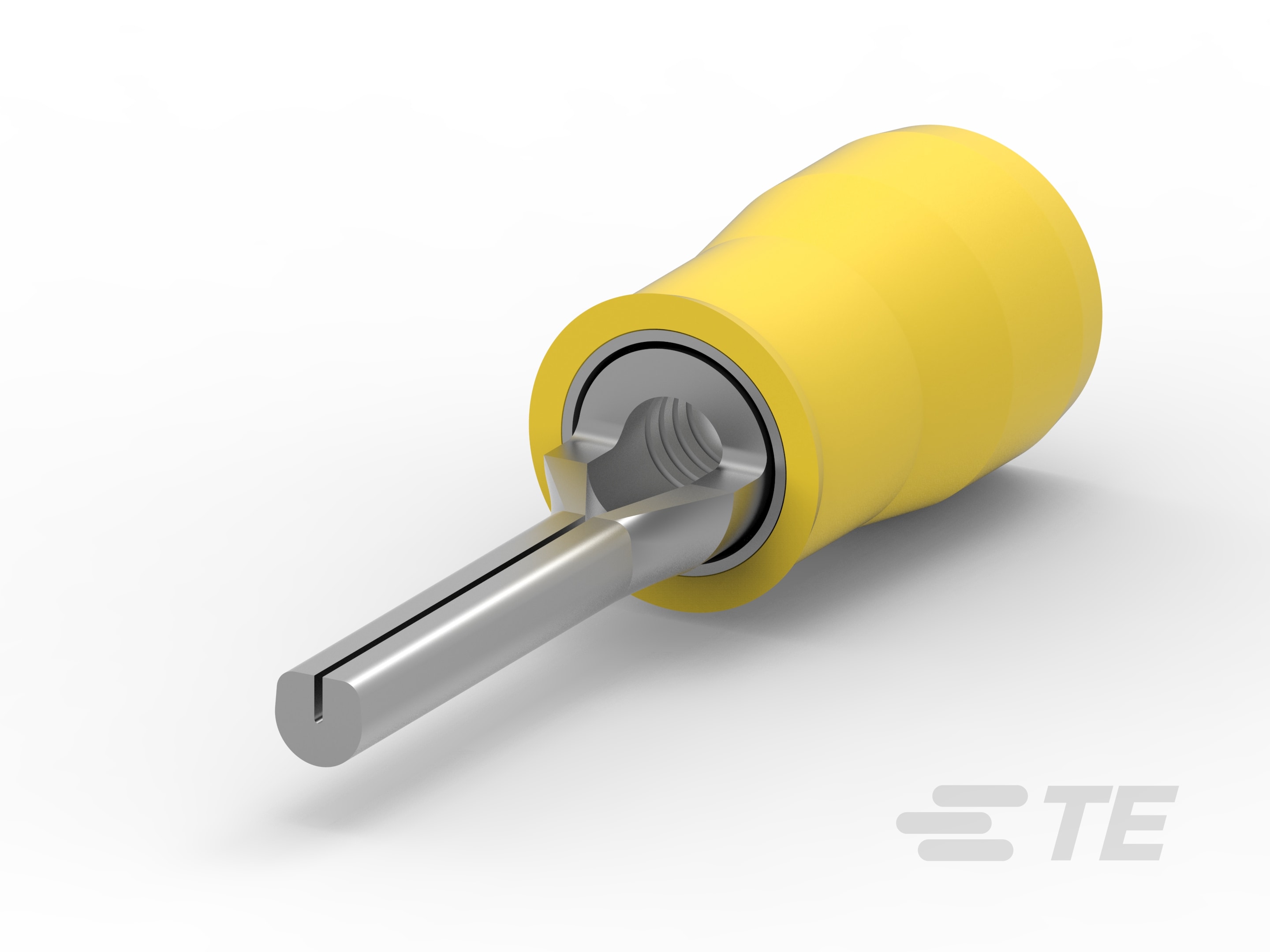

Wire Pin, 2.6 mm [.102 in] Pin Diameter, 12 – 10 AWG, 2.62 – 6.64 mm² Wire, 5180 – 13100 CMA, Closed Barrel, Tin Plating, PIDG

Technical Specifications

Parameters and characteristics for this part

Specification165049
ColorYellow
Contact FinishTin
Contact MaterialCopper
FeaturesSerrated Termination
InsulationInsulated
Insulation Diameter (Max)0.248 in
Insulation Diameter (Min)0.15 in
Length - Overall1.146 in
Length - Pin0.394 in
Material - InsulationPolyamide, PA, Nylon
Pin Diameter0.102 in
Pin Diameter ShapeCircular
TerminationCrimp
Wire Gauge10-12 AWG
Wire Gauge (AWG) (Max)12 AWG
Wire Gauge (AWG) (Min)10 AWG
Wire Gauge (Cross-Sectional Area) (Max)6.6 mm²
Wire Gauge (Cross-Sectional Area) (Min)2.7 mm²
