LC1D18D7
ActiveSCHNEIDER ELECTRIC
CONTACTOR, LC1D, 18 A, DIN RAIL, 600 V, 3PST-NO, 3 POLE, 15 HP
LC1D18D7
ActiveSCHNEIDER ELECTRIC
CONTACTOR, LC1D, 18 A, DIN RAIL, 600 V, 3PST-NO, 3 POLE, 15 HP
Description
General part information
LC1D18D7

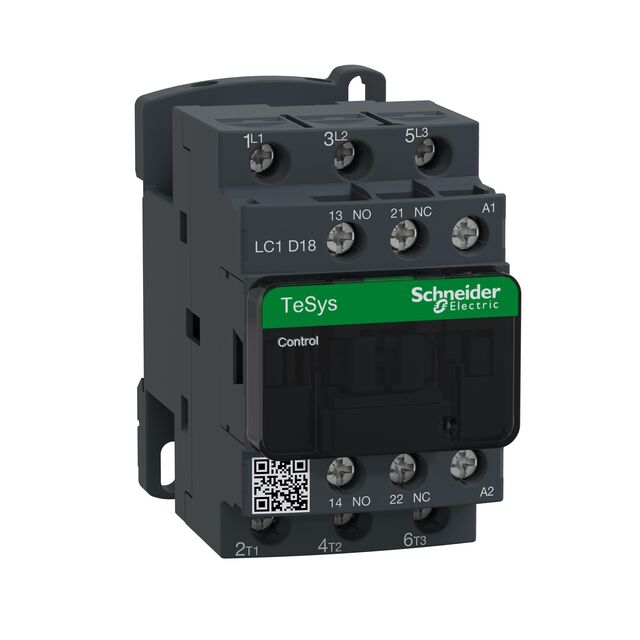

The LC1D18D7 is a TeSys D 3-pole Contactor with 3NO power pole and 1NO-1NC auxiliary contacts. TeSys D contactor is designed for perfect integration in control systems. It can be used to create motor starters for any type of application.
Technical Specifications
Parameters and characteristics for this part
| Specification | LC1D18D7 |
|---|---|
| Coil Voltage | 42 V |
| Contact Form | A, PST-NO, Form, 3 |
| Contact Rating (Current) | 18 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 33.6 VAC |
| Must Release Voltage | 12.6 VAC |
| Operate Time | 22 ms |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Pin Count | 3 pins |
| Release Time | 19 ms |
| Switching Voltage AC (Max) | 690 VAC |
| Switching Voltage DC (Max) | 300 VDC |
| Termination Style | Screw Terminal |
