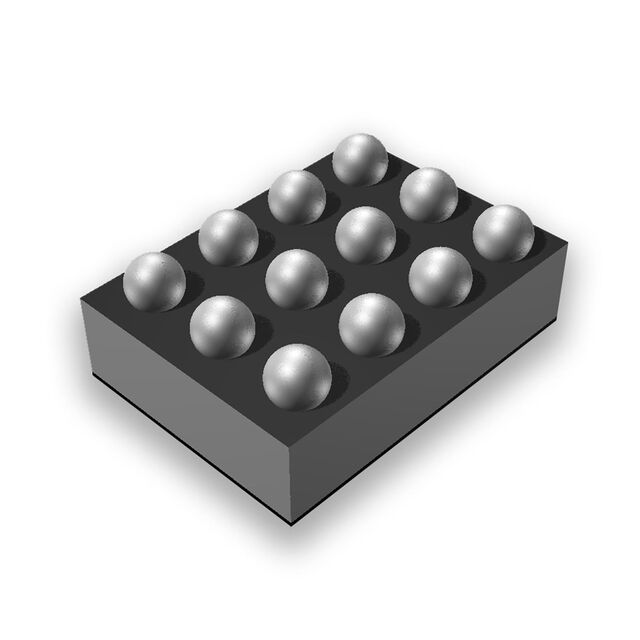

KTD3136EUS-TR
ActiveKinetic Technologies
HIGH EFFICIENCY 3-CHANNEL LED BA
KTD3136EUS-TR
ActiveKinetic Technologies
HIGH EFFICIENCY 3-CHANNEL LED BA
Description
General part information
KTD3136EUS-TR
LED Driver IC 3 Output DC DC Regulator Step-Up (Boost) I2C, PWM Dimming 29.8mA 12-WLCSP (1.19x1.64)
Technical Specifications
Parameters and characteristics for this part
| Specification | KTD3136EUS-TR |
|---|---|
| Applications | Backlight |
| Current - Output / Channel | 29.8 mA |
| Dimming | PWM, I2C |
| Frequency | 1 MHz, 500 kHz |
| Frequency | 1MHz, 500kHz |
| Mounting Type | Surface Mount |
| Number of Outputs | 3 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | WLCSP, 12-WFBGA |
| Package Length | 1.19 mm |
| Package Name | 12-WLCSP |
| Package Width | 1.64 mm |
| Topology | Step-Up (Boost) |
| Type | DC DC Regulator |
| Voltage - Supply (Max) | 5.5 V |
| Voltage - Supply (Min) | 2.7 V |
