AFC8513U4GS-0100S

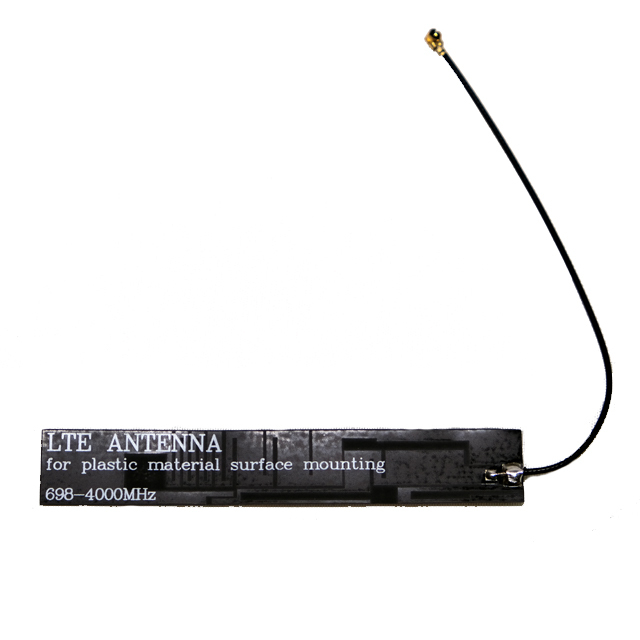

RF ANTENNA 2G, 3G, 4G, 5G, Beidou, GLONASS, GNSS, GPS, GSM, LTE, Wi-Fi Flat Patch I-PEX Adhesive
Technical Specifications
Parameters and characteristics for this part
| Specification | AFC8513U4GS-0100S |
|---|---|
| Antenna Type | Flat Patch |
| Applications | 5G, GSM, BEIDOU, Wi-Fi, GNSS, GLONASS, 3G, LTE, 2G, 4G, GPS |
| Features | Cable, 100mm |
| Frequency (Center/Band) | 2.349 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Frequency Range (Max) | 4 GHz |
| Frequency Range (Min) | 698 MHz |
| Gain | 5 dBi |
| Height (Max) | 0.008 in |
| Mounting Type | Adhesive |
| Number of Bands | 1 |
| Power - Max | 5 VA |
| RF Family/Standard | Cellular, Navigation, WiFi |
| Termination | I-PEX |
| VSWR | 3 |
