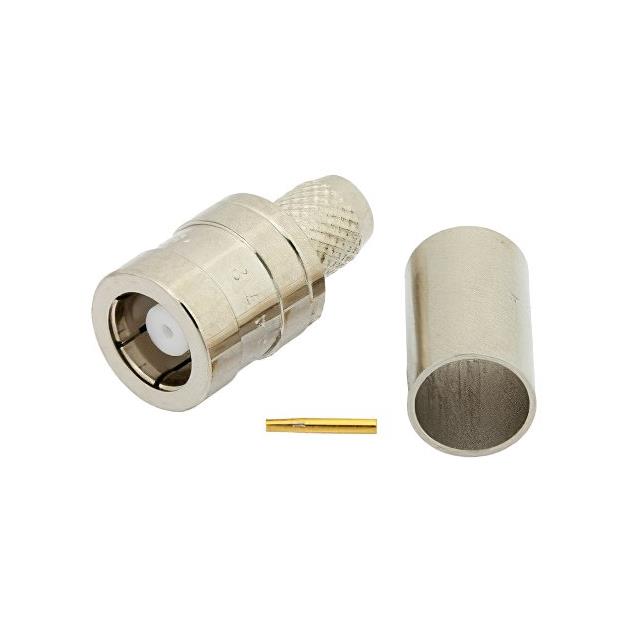

PE4472
ActivePasternack
75 OHM SMB PLUG CONNECTOR CRIMP/
PE4472
ActivePasternack
75 OHM SMB PLUG CONNECTOR CRIMP/
Description
General part information
PE4472
SMB Connector Plug, Female Socket 75 Ohms Free Hanging (In-Line) Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | PE4472 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | RG-59, 71, 62 |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | SMB |
| Connector Type | Plug, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Housing Color | Silver |
| Impedance | 75 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Crimp |
