5-87623-4

Active

TE Connectivity AMP Connectors

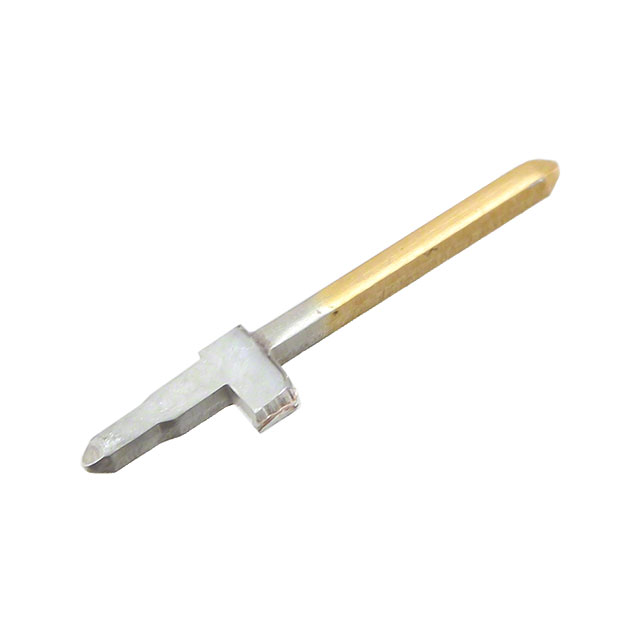

CONN PC PIN SQUARE 0.025 GOLD

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PC PIN SQUARE 0.025 GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	5-87623-4

Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Phosphor Bronze
Insulation	Non-Insulated
Length - Overall	11.25 mm
Length - Overall	0.443 in
Mounting Hole Diameter [diameter]	0.036 "
Mounting Hole Diameter [diameter]	0.91 mm
Mounting Type	Through Hole
Pin Size - Above Flange	0.64 mm
Pin Size - Above Flange	0.025 in
Terminal Style	Smooth
Terminal Type	Single Post
Termination	Solder

CONN PC PIN SQUARE 0.025 GOLD

Part	Length - Overall	Length - Overall	Contact Finish Thickness	Contact Finish Thickness	Pin Size - Above Flange	Pin Size - Above Flange	Terminal Style	Termination	Mounting Type	Terminal Type	Contact Material	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Finish	Insulation
TE Connectivity AMP Connectors 5-87623-4	11.25 mm	0.443 in	15 µin	0.38 µm	0.64 mm	0.025 in	Smooth	Solder	Through Hole	Single Post	Phosphor Bronze	0.036 "	0.91 mm	Gold	Non-Insulated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Single Post Terminal Connector Through Hole Gold 0.025" (0.64mm) Square
